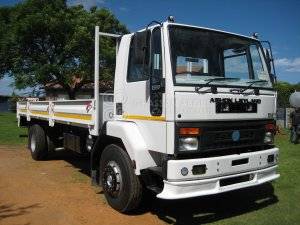

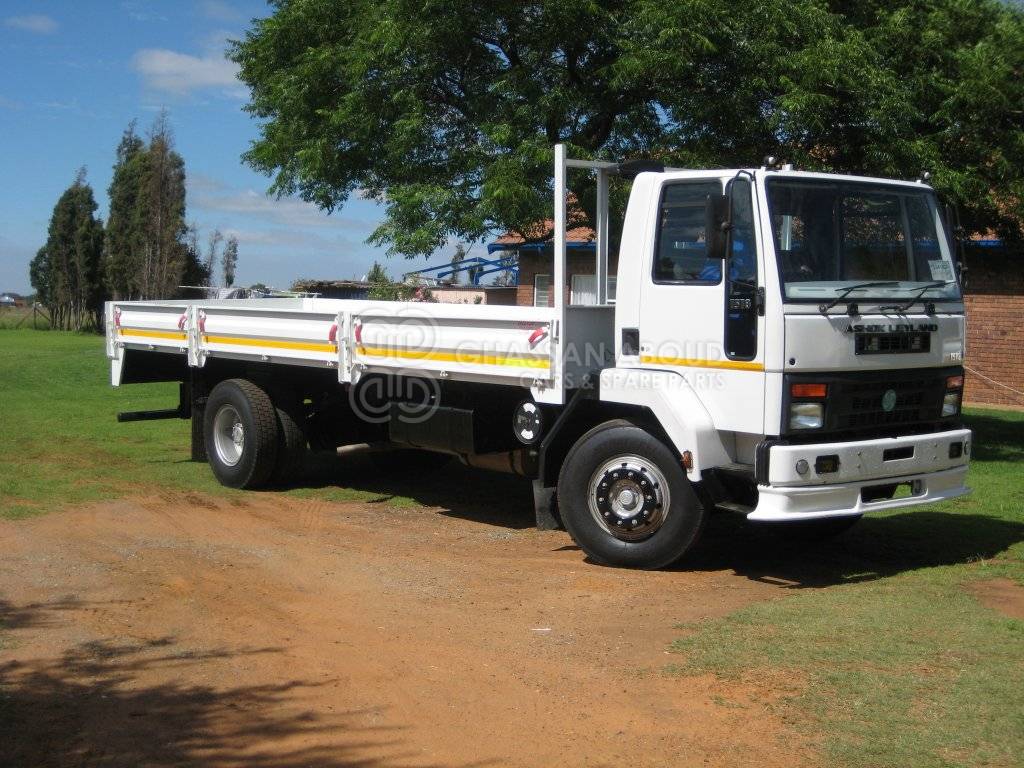

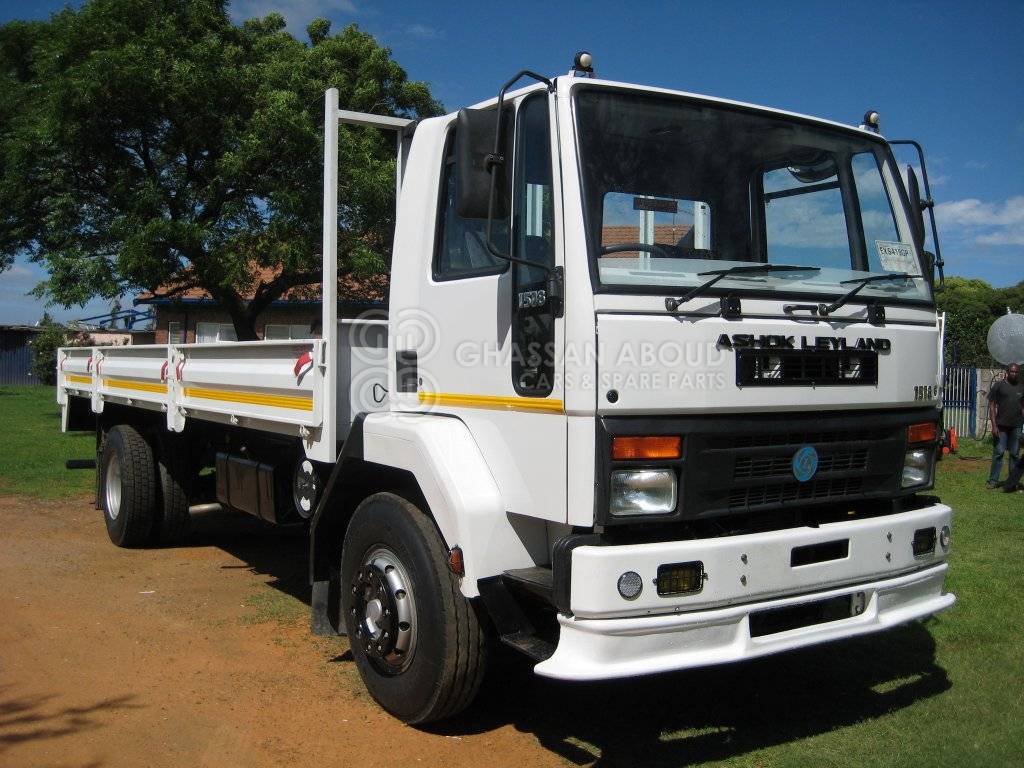

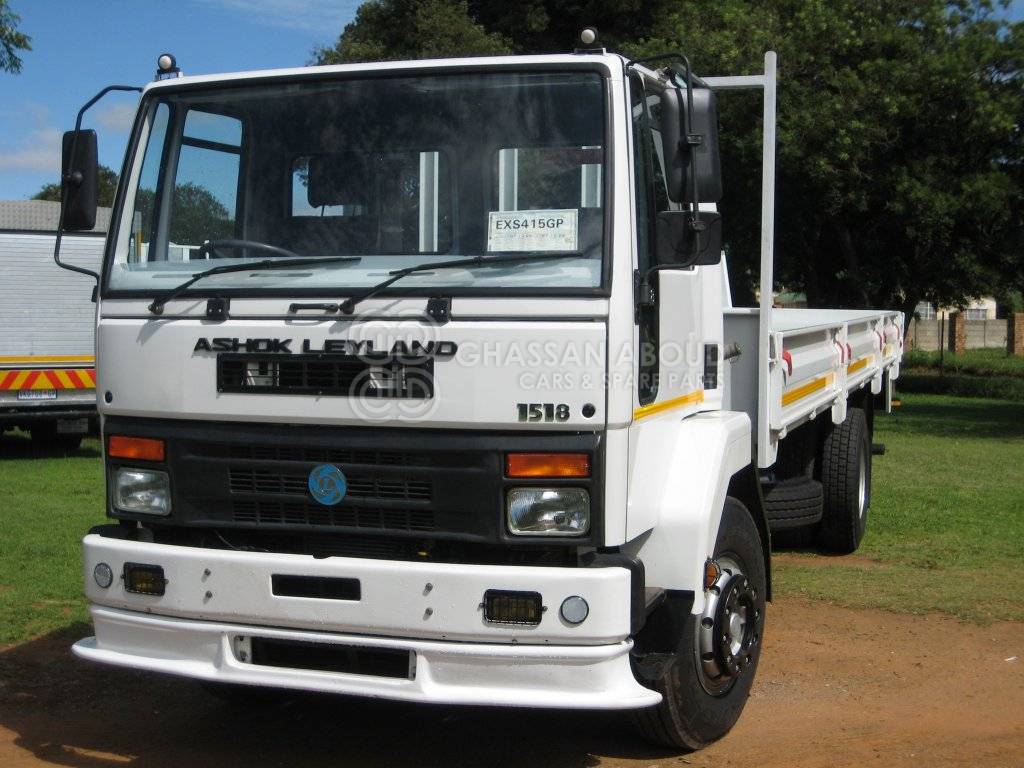

ASHOK LEYLAND TRUCK CARGO PAYLOAD 10 TON (APPROX) MY23 Light Duty Diesel

Specs: Code
Year: 2023
Model description
Model description:
ASHOK LEYLAND TRUCK CARGO PAYLOAD 10 TON (APPROX) MY23 Light Duty Code Diesel
Car code:
AB10523 - 10 Ton approx payload (cargo)
Year:
2023
Engine & Transmission
Engine:
HA6ETI3UN turbocharged intercooled diesel inline engine
Max Output :
180 HP @ 2400 RPM
Max Torque :
670 Nm @ 1350 - 1600 RPM
Emission:
Euro III
Gearbox:
Synchromesh ZF S6-36 (OD)
Maximum speed in top gear:
100 kmph
Dimension, Capacities & Suspensions
Gross Vehicle Weight:
15000 kg
Front Axle Weight:
2660 kg
Rear Axle Weight:
1842 kg
Payload:
10 Ton (approx)
Cargo Size:
7200 x 2500 x 400
Shipping Dimension:
9100 x 2500 x 2800 mm (LxWxH)
Wheelbase:
5200 mm
Front Over Hang:
1143 mm
Rear Over Hang:
2388 mm
Min. Ground Clearance:
258 mm
Turning Circle Diameter:
19 mtr
No. of Propeller shafts:
3
Rear Axle Capacity:
Fully floating single speed hypoid gear
Axle Capacity:
10000
Axle Ratio:
5.57.1
Front Axle:
Forged "I" section reverse elliot type
Axle Capacity:
6000
Clutch:
Air boosted hydraulic 380 mm diaphragm clutch
Fuel Tank Capacity:
212 liters
Suspension:
Sem elliptic multi leaf shackle ended
Shock Absorber:
Double acting, telescopic type at front
Tyre Size:
11.00 R 22.5
Electrical System:
24V negative earth
Battery:
100 AH. Hr. (20 Hr. Rating)
Alternator:
85 amps
Steering:
ZF power assisted
Brakes:
Full air dual line
Parking Brake:
Pneumatically controlled on rear wheels
Service Brake:
Pneumatically controlled
Interior features & Safety
Front and rear anti roll bar
Electronic speedometer
Specifications may change without prior notice.
