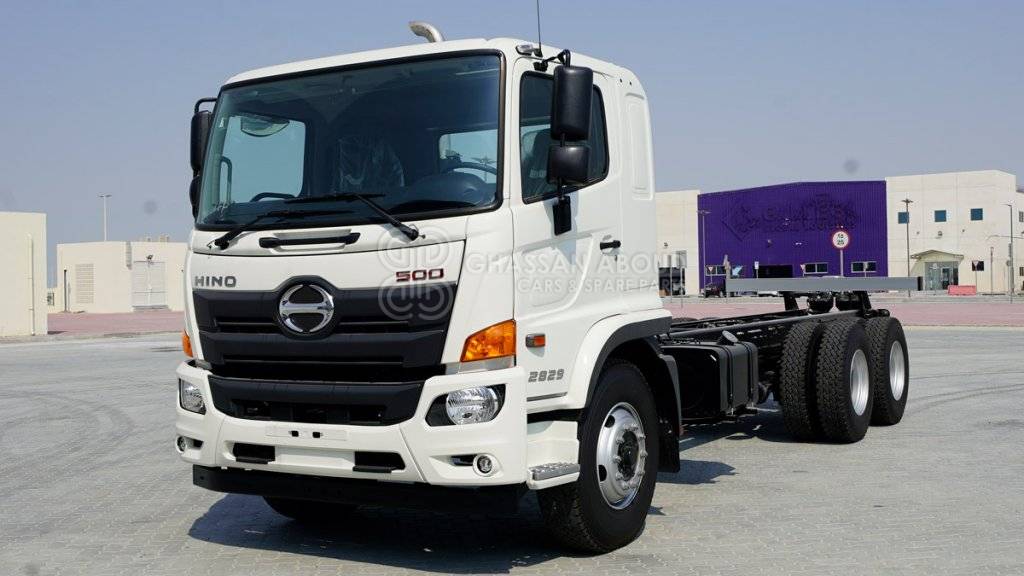

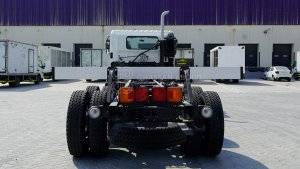

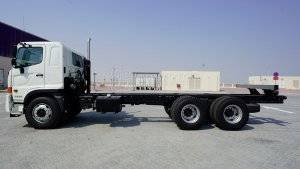

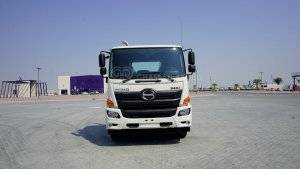

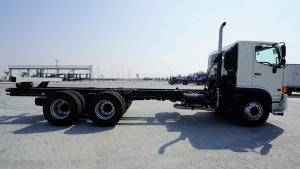

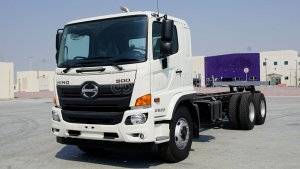

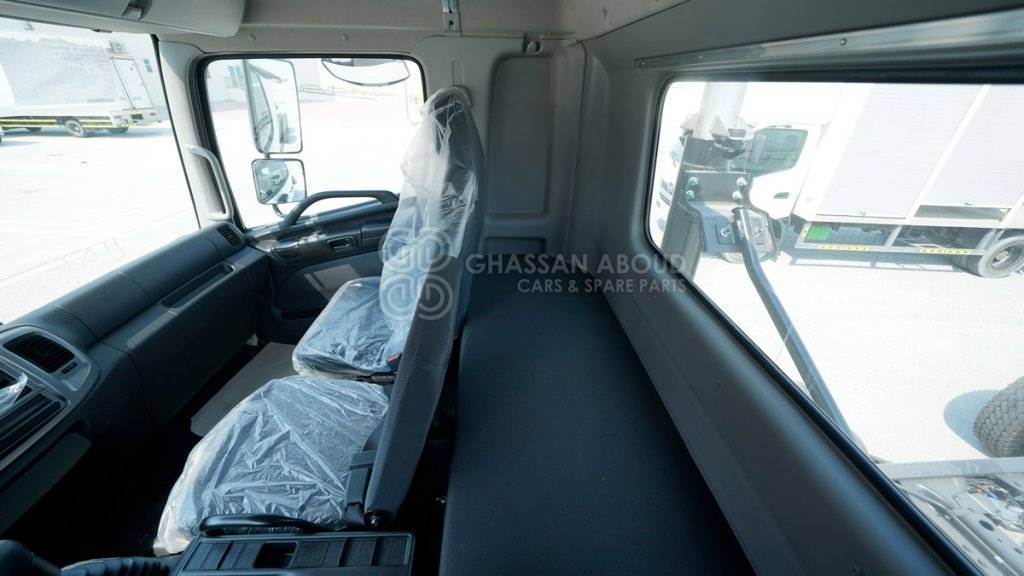

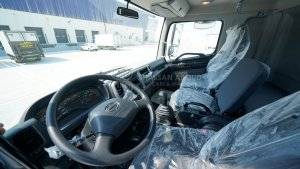

HINO FM 2829 Chassis GVW 28 Ton, Single Cab 6 × 4 with Bed Space, M/T MY23 500 Series Diesel

Specs: Top

Year: 2023

Model description

Model description:

HINO FM 2829 Chassis GVW 28 Ton, Single Cab 6 × 4 with Bed Space, M/T MY23 500 Series Top Diesel

Car code:

HNFM023 - 21 Ton payload (2829 Chassis)

Year:

2023

Engine & Transmission

Engine:

J08E-WD, Turbo, 6 Cylinders

Max Output:

285 PS @ 2,500 RPM

Max Torque:

834 N.m @ 1,500 RPM

Displacement:

7684 cc

Gearbox Model:

M009

Transmission:

Manual 9+1

Final Gear Ratio:

5.25

Dimension, Capacities & Suspensions

Gross Vehicle Mass:

28,000 kg

Chassis Payload:

21 Ton

Wheel Base:

4,630 + 1,350 mm

Overall Length:

9,485 mm

Cabin Width:

2,490 mm

Overall Height:

3,365 mm

Chassis Length:

7,185 mm

Rear Overhang:

2,225 mm

Rear Axle Width:

2,450 mm

Front Tread:

2,030 mm

Rear Tread:

1,855 mm

Ground Clearance:

250 mm

Rear Chassis Height:

1,070 mm

Front Kerb Weight:

3,270 kg

Rear Kerb Weight:

3,905 kg

Front Axle Weight:

7,500 kg

Rear Axle Weight:

21,800 kg

Alternator:

24V-50A

Fuel Tank Capacity:

200 liters

Shipping Dimension:

9.5 x 2.5 x 2.8 m (LxWxH)

Frame Width:

840 mm

Frame Section:

298x80x7.0 mm

Parking Brake:

Spring Brake

Exhaust Brake:

Yes

Service Brake:

Full Air dual circuit

Front Brake:

Drum (410x150mm)

Rear Brake:

Drum (410x220mm)

Number of Axles:

Tyre Size:

315/80R22.5

Tyre:

Tubeless

Rim Size:

22.5 x 9.0

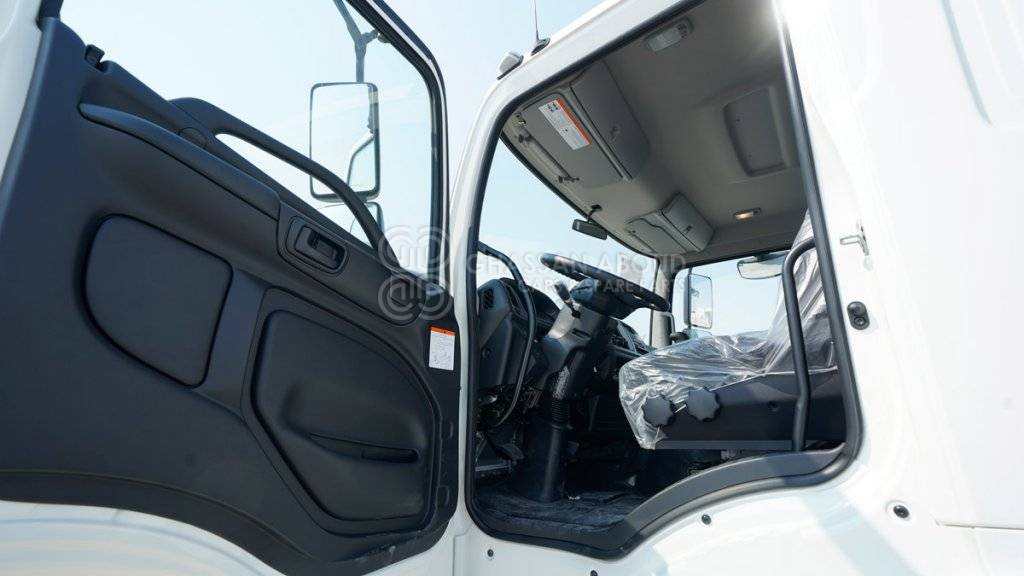

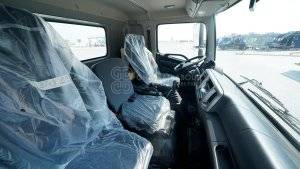

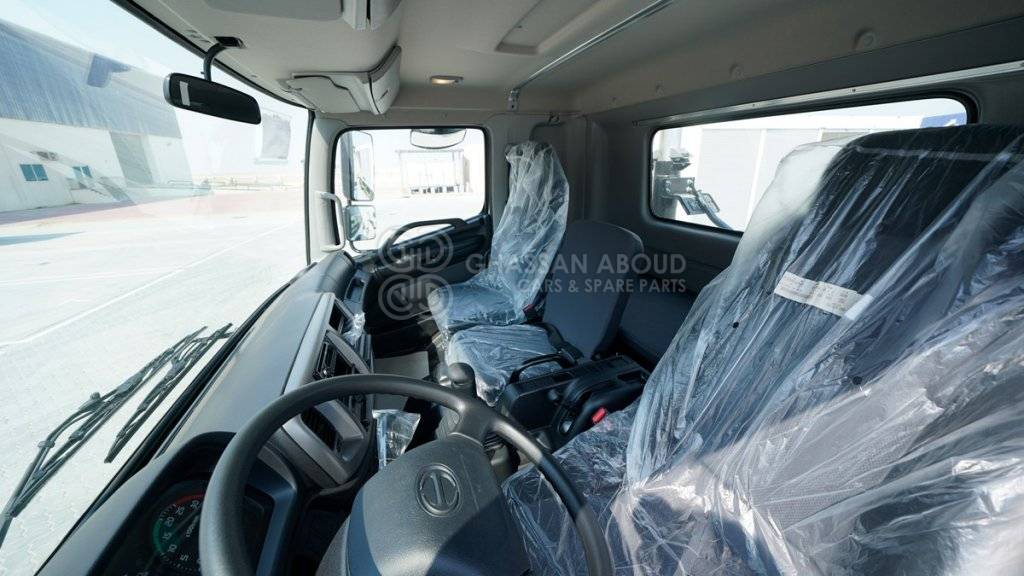

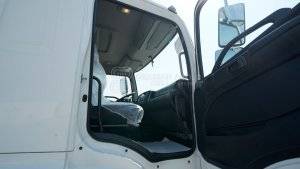

Interior features & Safety

Anti Lock Brakes

Power Windows

Fog Lamp

Central Lock

Specifications may change without prior notice.

HINO FM 2829 Chassis GVW 28 Ton, Single Cab 6 × 4 with Bed Space, M/T MY23 500 Series Diesel

Most viewed

Toyota

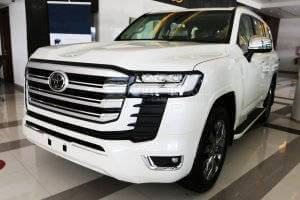

TOYOTA LAND CRUISER 3.3L EXR, DIESEL TWIN TURBO, A/T MY22 3.3L

Toyota

TOYOTA LAND CRUISER 4.0L P VXR, A/T, MY22 4.0L New

HINO

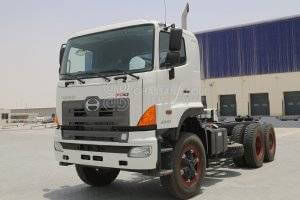

HINO ZS – 4041 Chassis 30 Tons(Approx) Single Cab 6×4 , M/T MY22 700 Series
