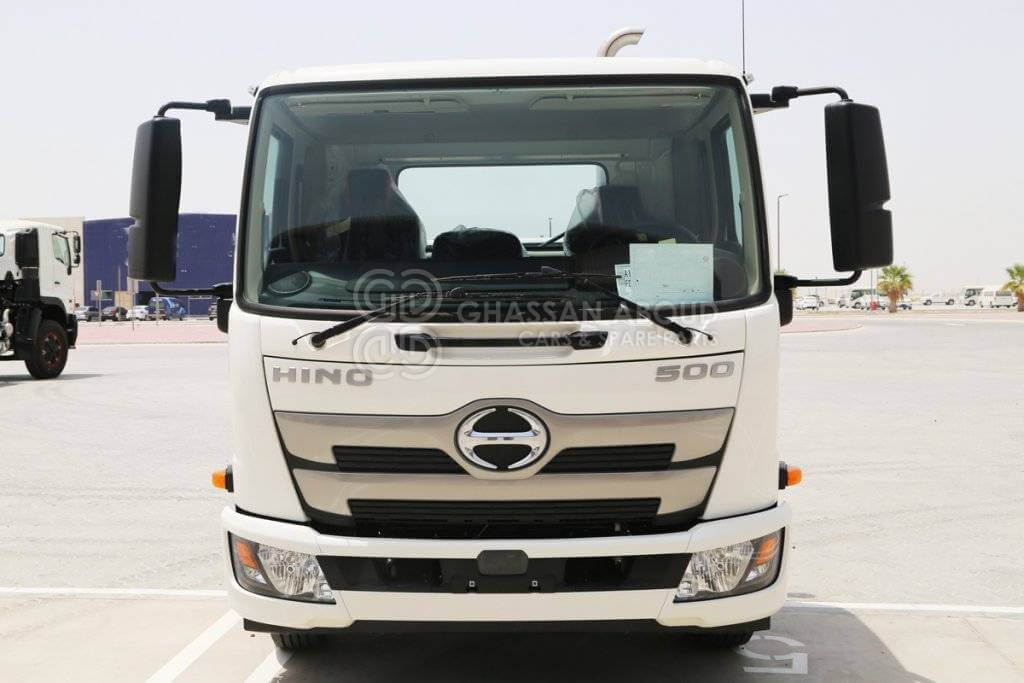

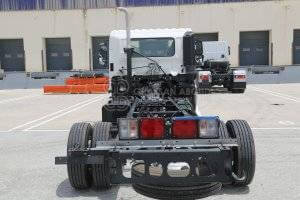

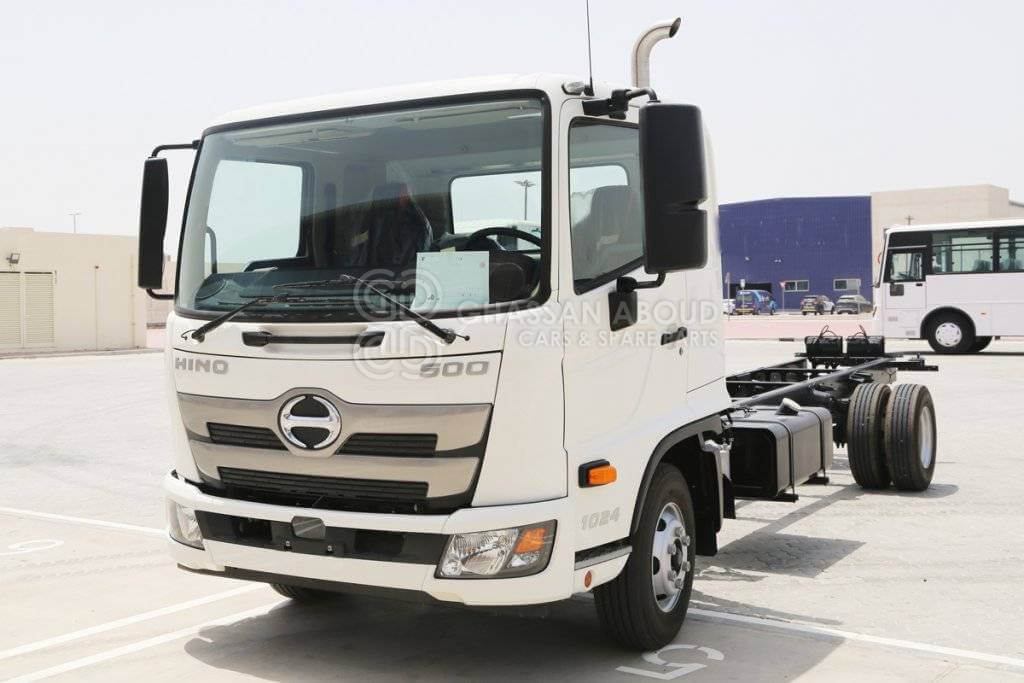

HINO FD 7 Ton Payload (approx) Single Cab 4×2 w/ Airbag M/T MY2023 500 Series Diesel

Specs: Code

Year: 2023

Model description

Model description:

HINO FD 7 Ton Payload (approx) Single Cab 4×2 w/ Airbag M/T MY2023 500 Series Code Diesel

Car code:

HNFD023 - 7 Ton payload (1024 chassis)

Year:

2023

Engine & Transmission

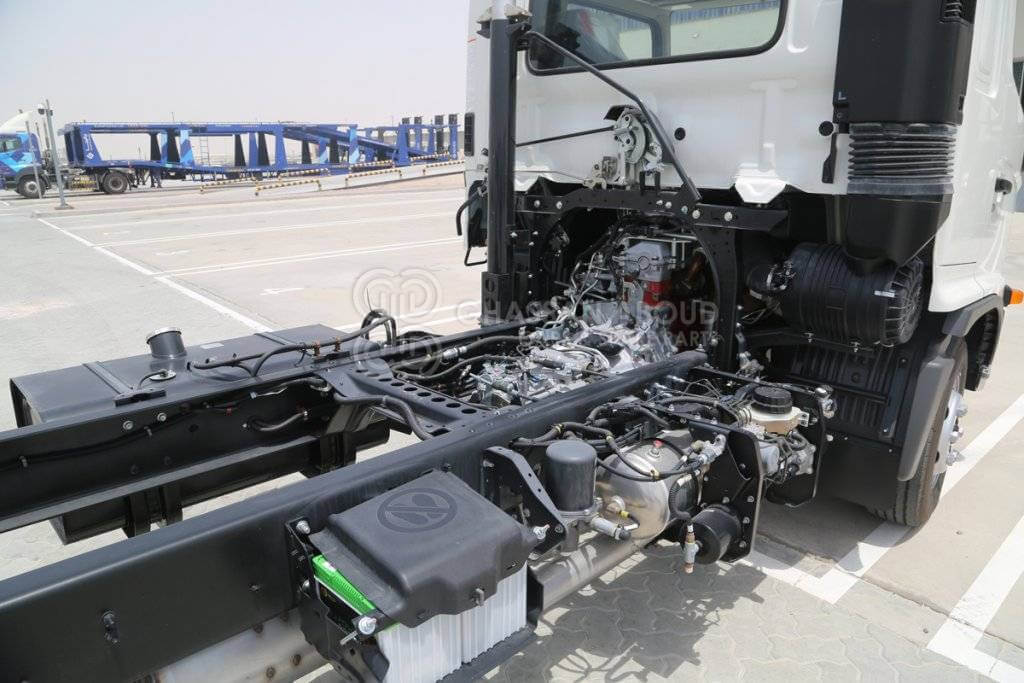

Engine:

Model J08E-WF, Turbo 6 Cylinder

Max Output:

245 PS @ 2,500 RPM

Max Torque:

726 N.m. @ 1,500 RPM

Gearbox Model:

LX06

Displacement:

7,684 cc

Transmission:

Manual 6+1

Final Gear Ratio:

4.625

Dimension, Capacities & Suspensions

Gross Vehicle Mass:

10,400 kg

Chassis Payload:

7 Ton approx.

Wheel Base:

4,850 mm

Overall Length:

8,095 mm

Cabin Width:

2,190 mm

Overall Height:

2,925 mm

Rear Overhang:

2,060 mm

Rear Axle Width:

2,165 mm

Front Tread:

1,800 mm

Rear Tread:

1,660 mm

Chassis Length:

5,905 mm

Ground Clearance:

220 mm

Rear Chassis Height:

885 mm

Front Kerb Weight:

2,345 kg

Rear Kerb Weight:

1,130 kg

Front Axle Weight:

3,600 kg

Rear Axle Weight:

7,000 kg

Alternator:

24V - 90A

Fuel Tank Capacity:

200 Liters

Frame Width:

820 mm

Frame Section:

231.6x73x6.8mm

Parking Brake:

Mechanical, internal

Exhaust Brake:

Yes

Service Brake:

Air over Hydraulic

Front Brake:

Drum (320x110mm)

Rear Brake:

Drum (325x145mm)

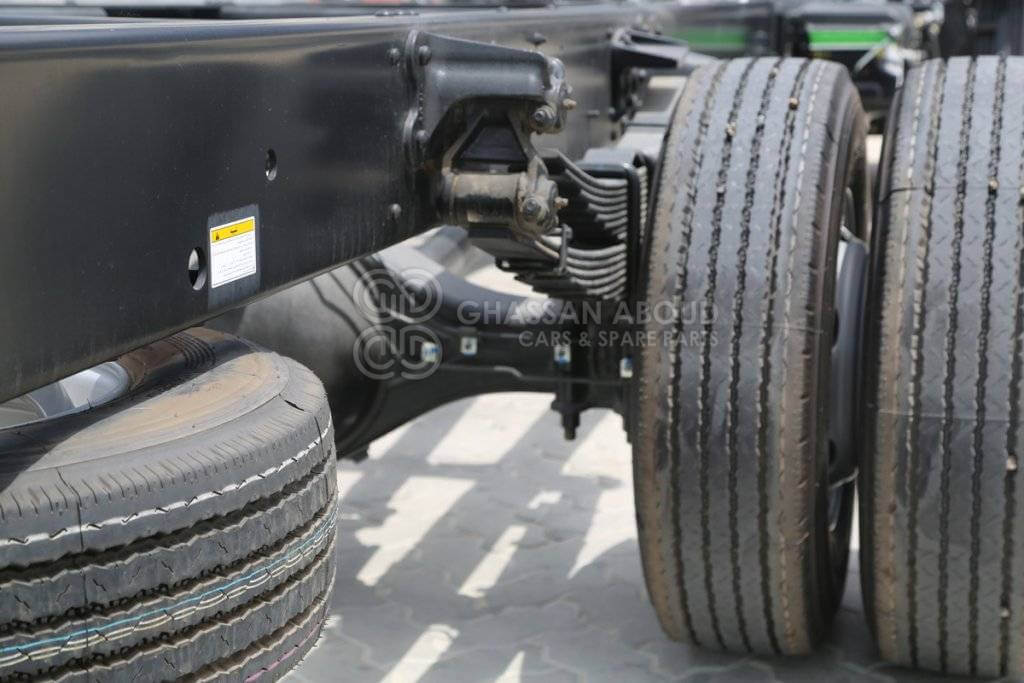

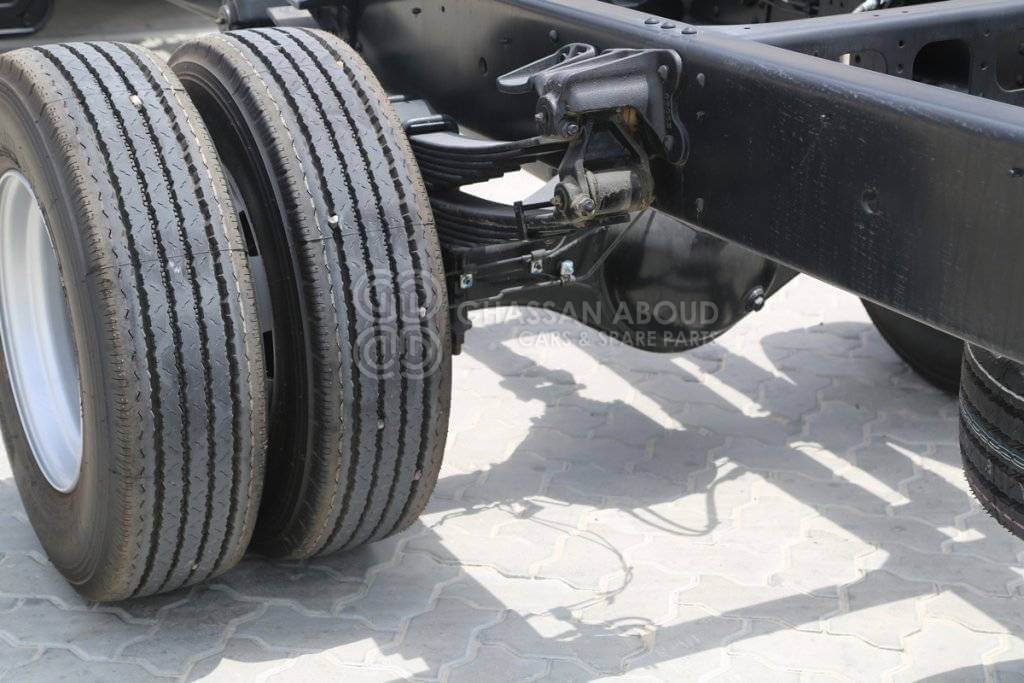

Tyre Size:

235/75 R 17.5

Tyre:

Tubeless

Rim Size:

17.5

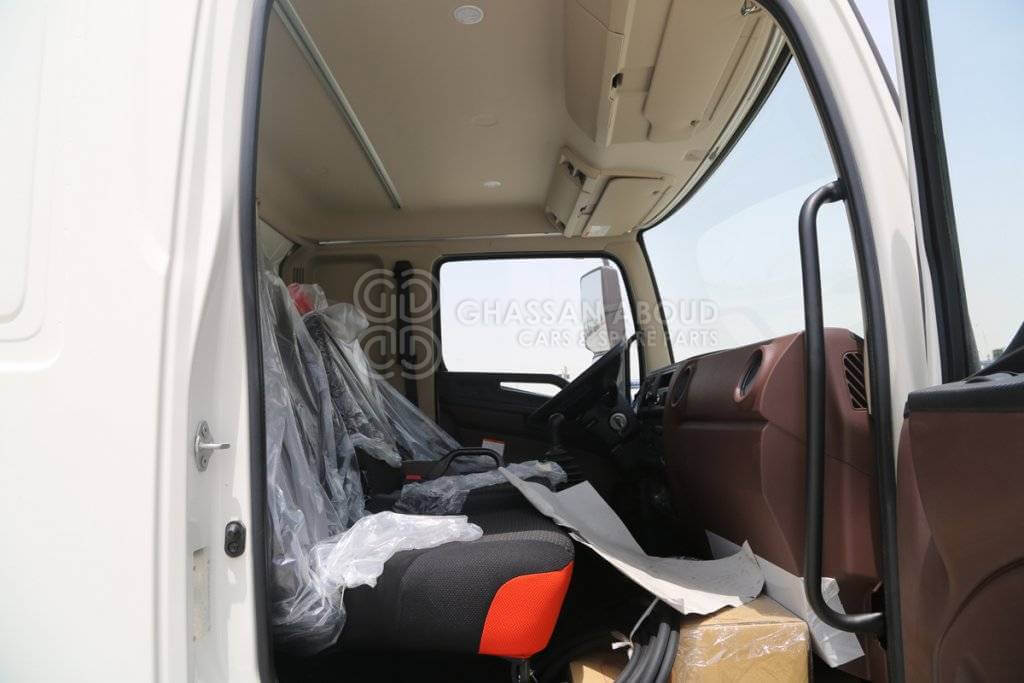

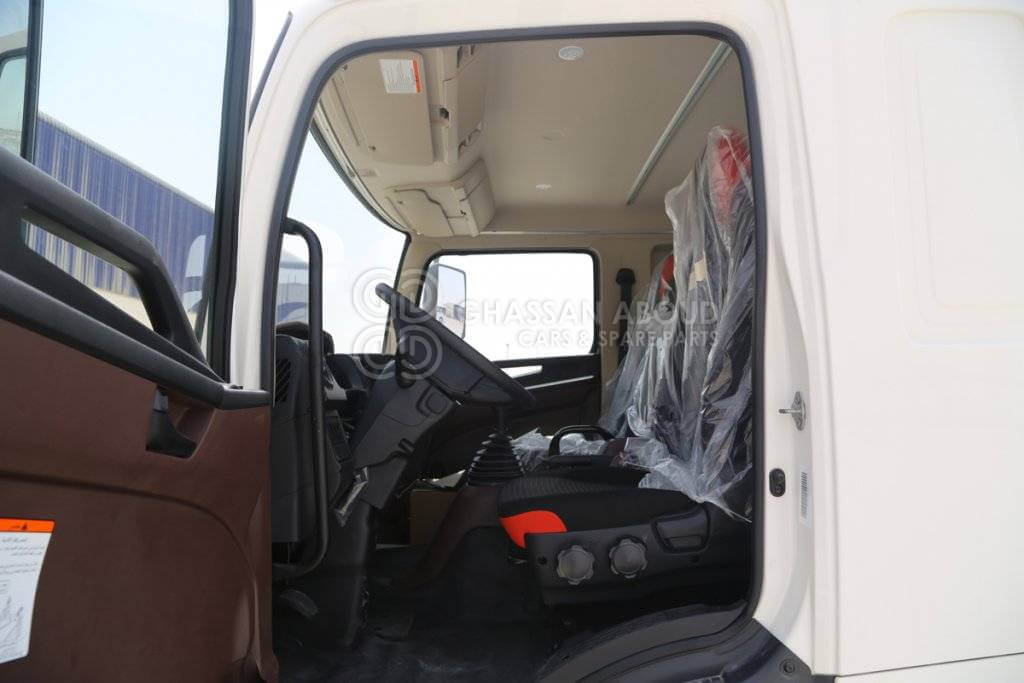

Interior features & Safety

Power Windows

Audio with Bluetooth

Fog Lamp

Central Lock

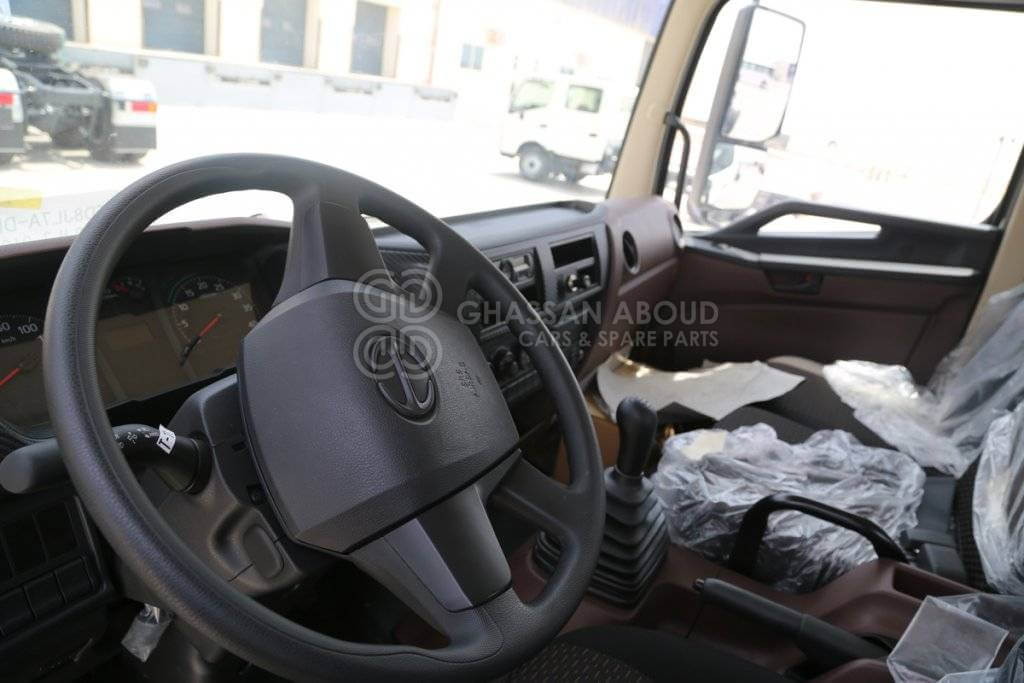

SRS Airbag

Specifications may change without prior notice.
