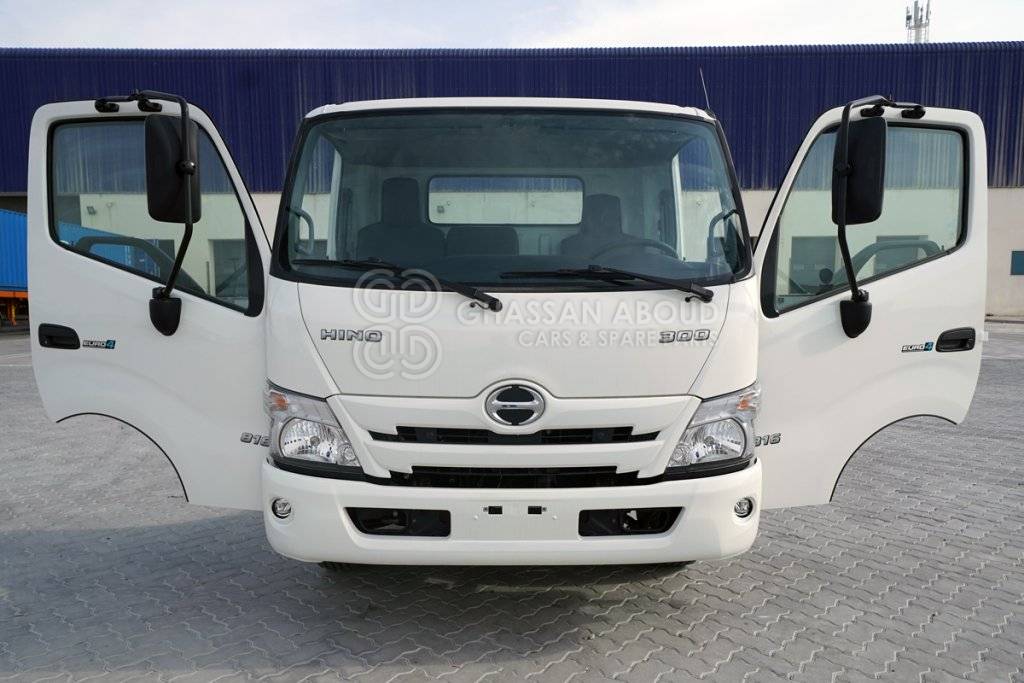

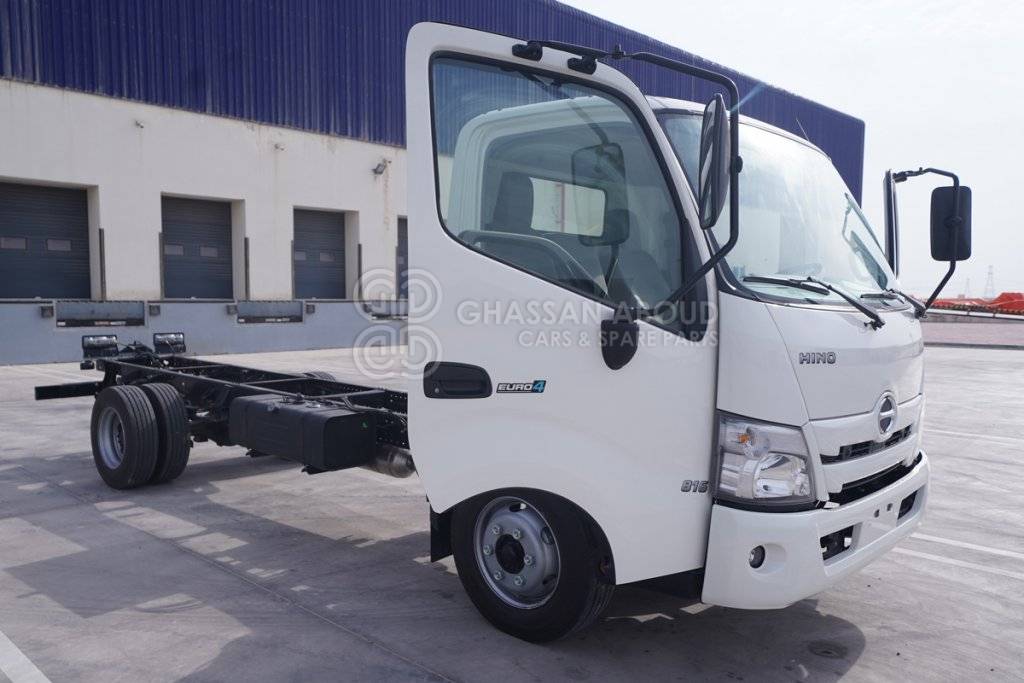

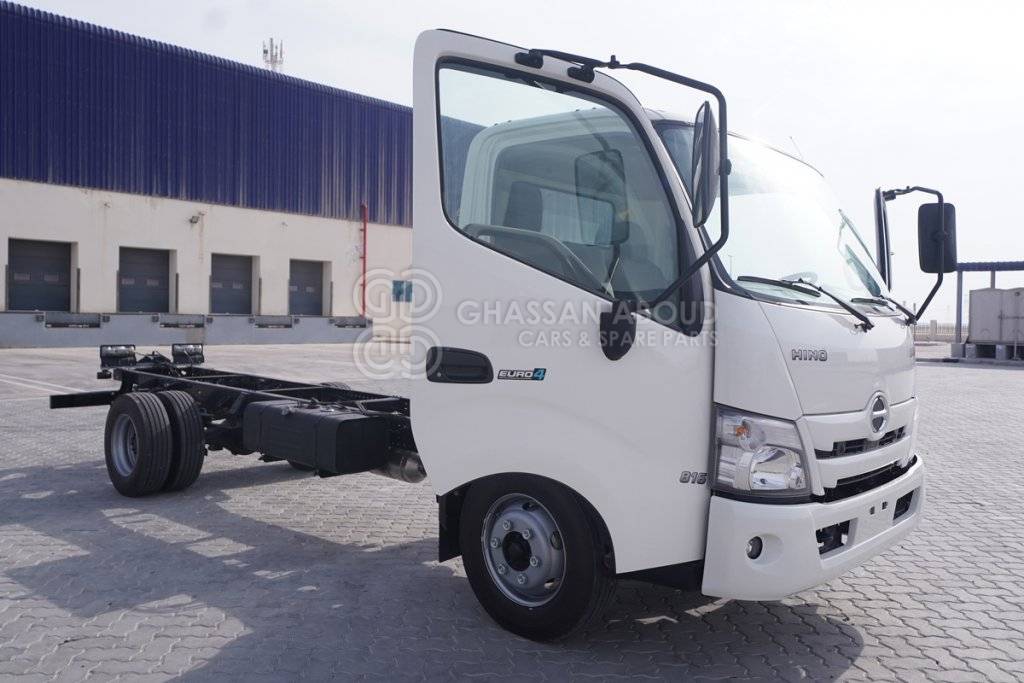

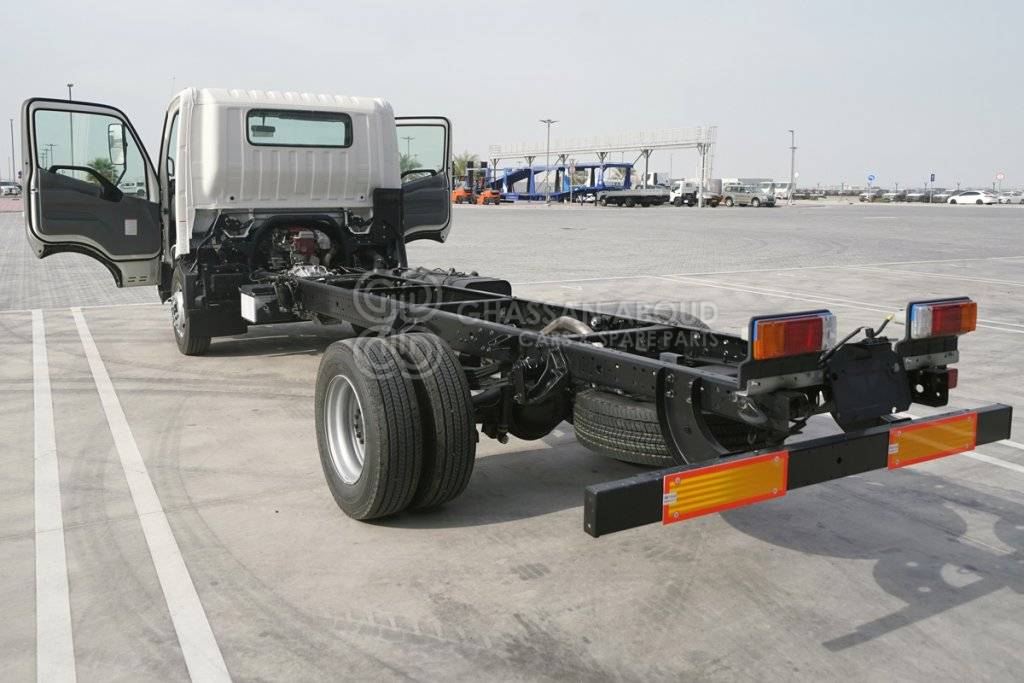

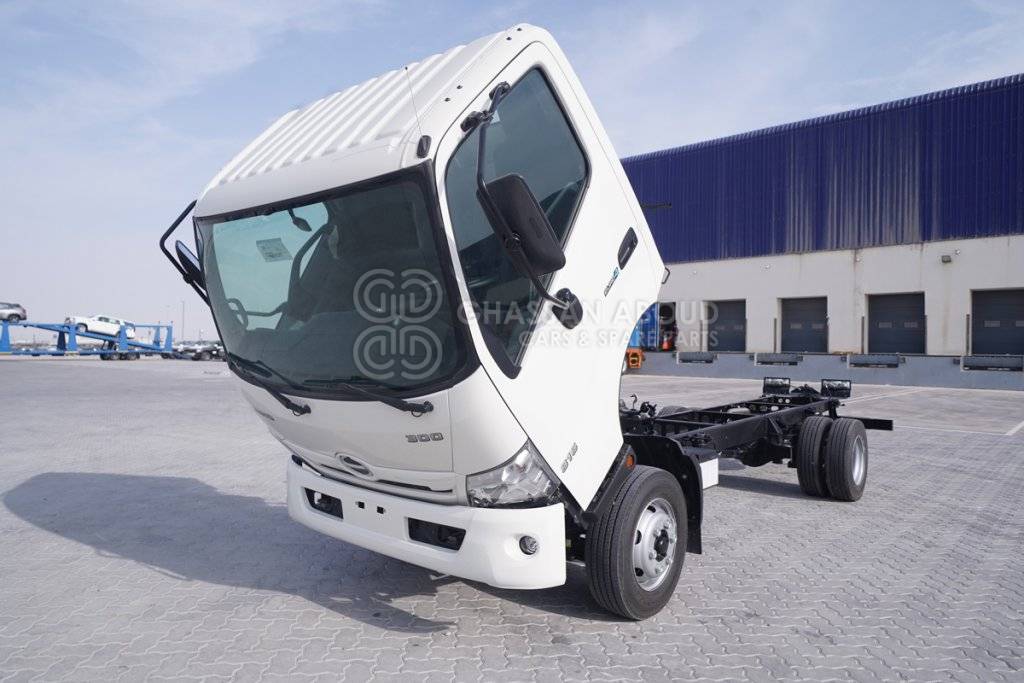

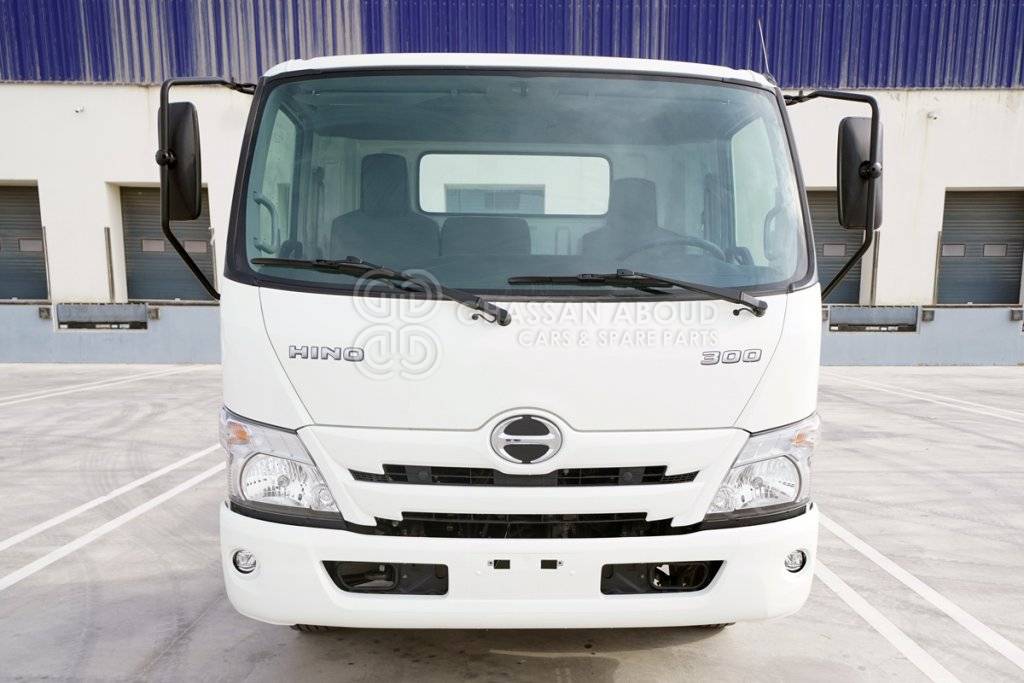

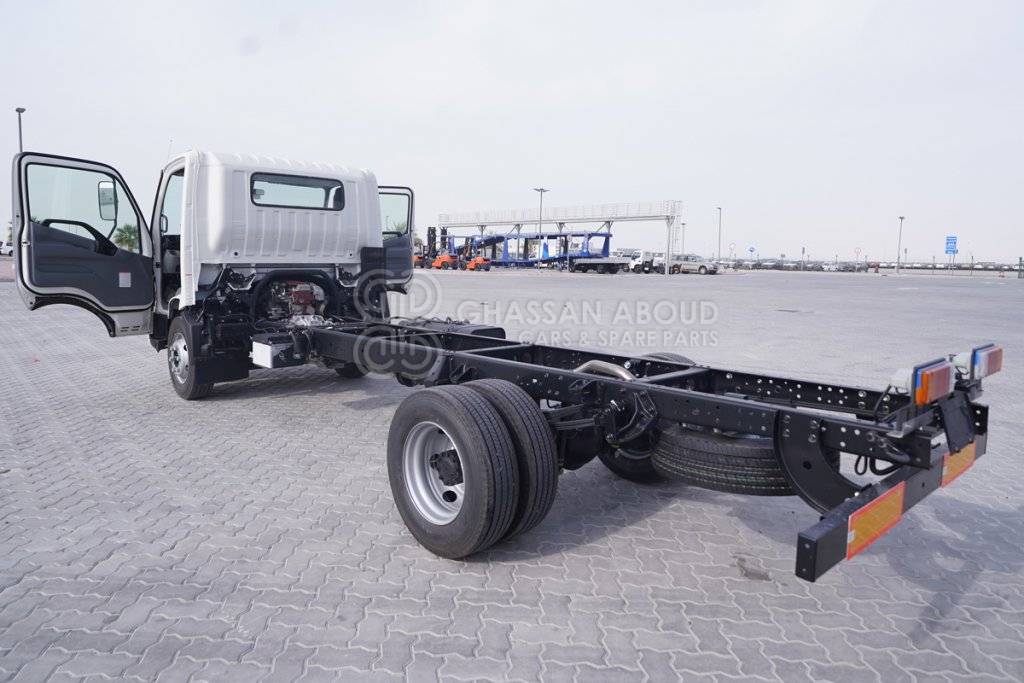

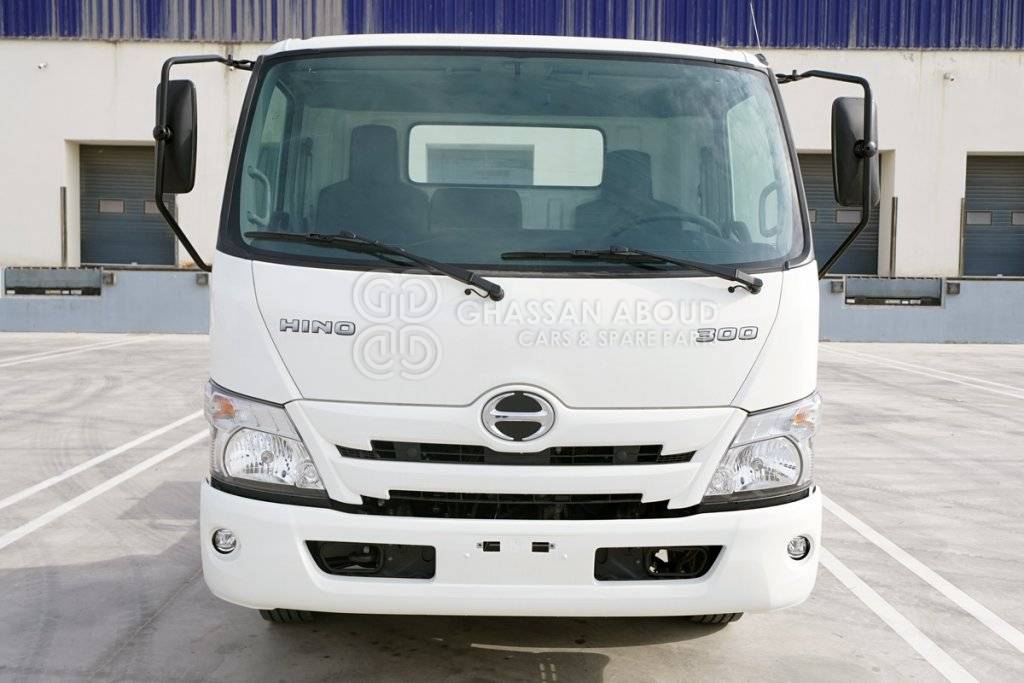

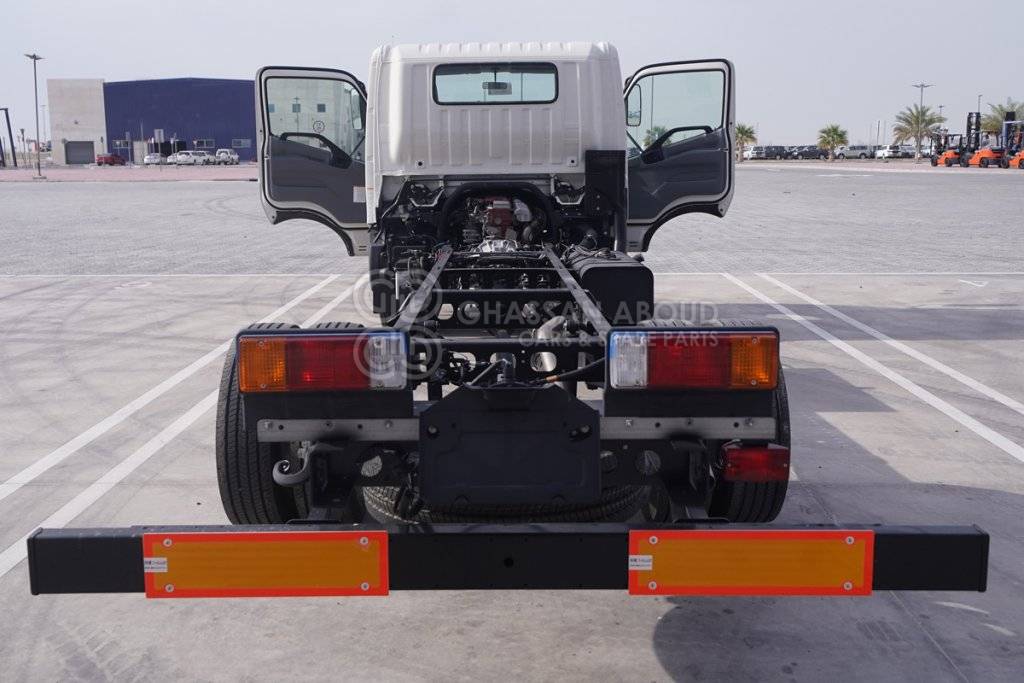

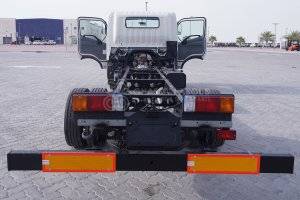

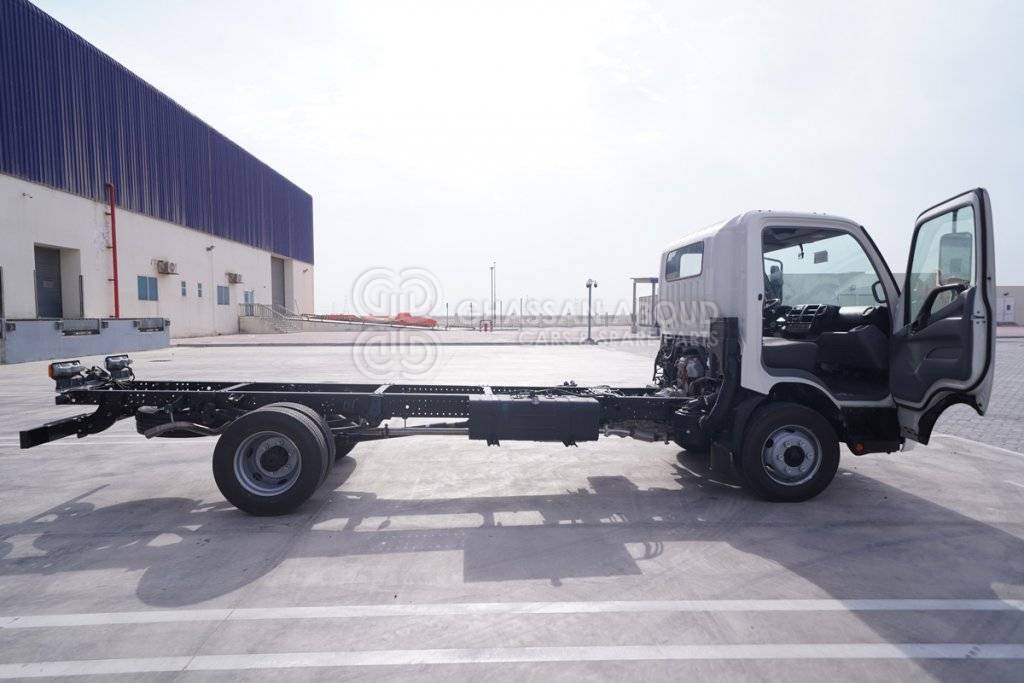

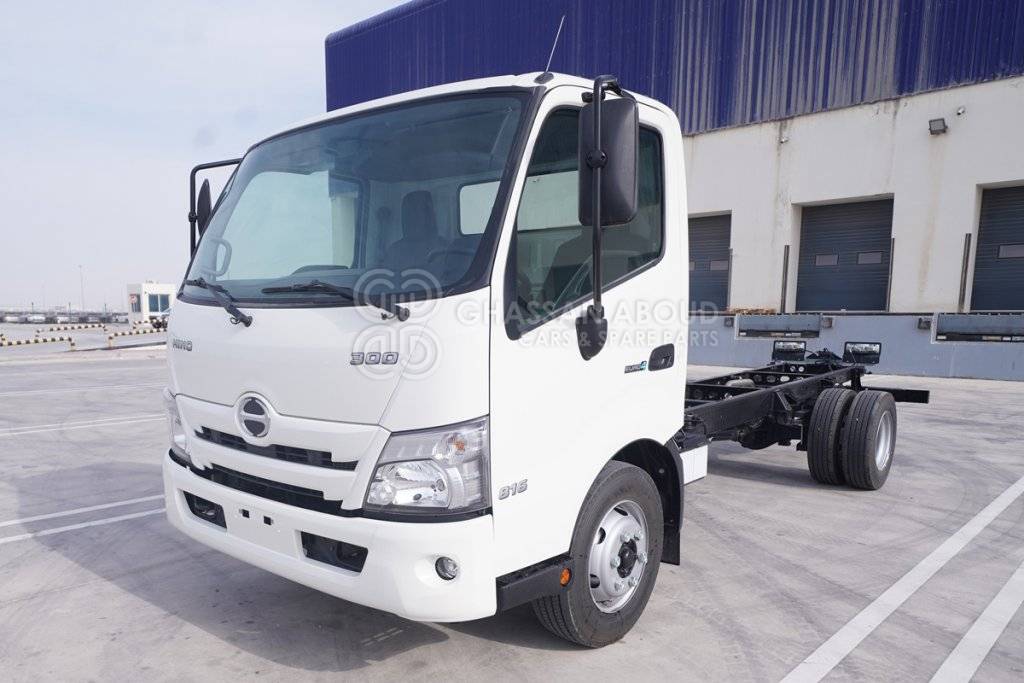

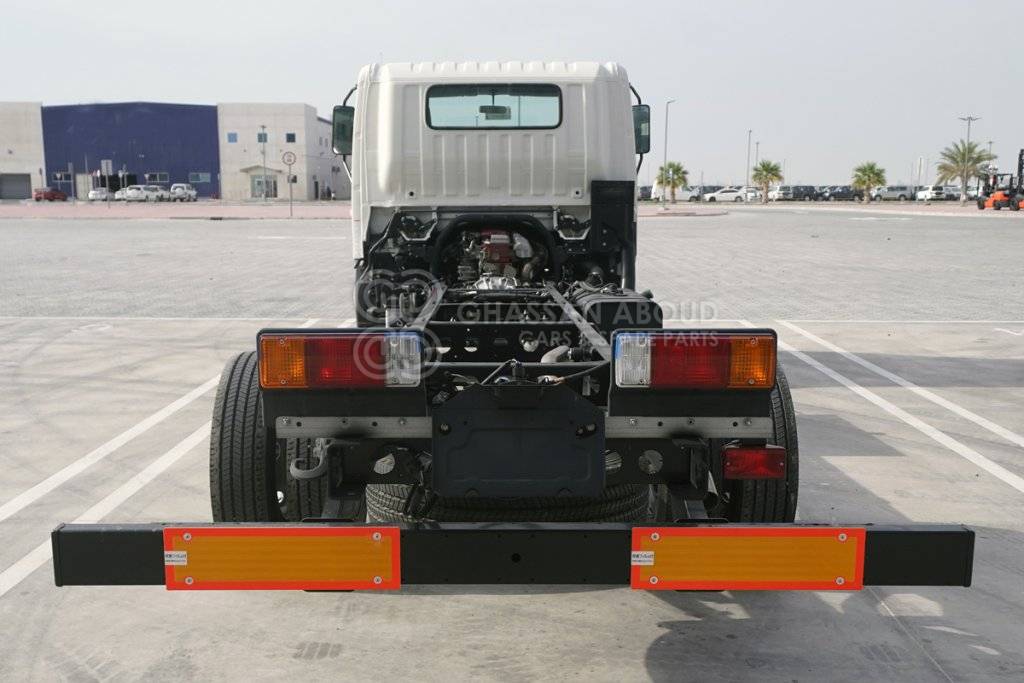

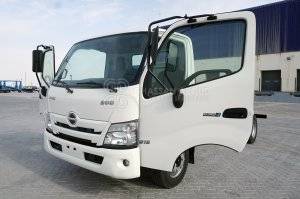

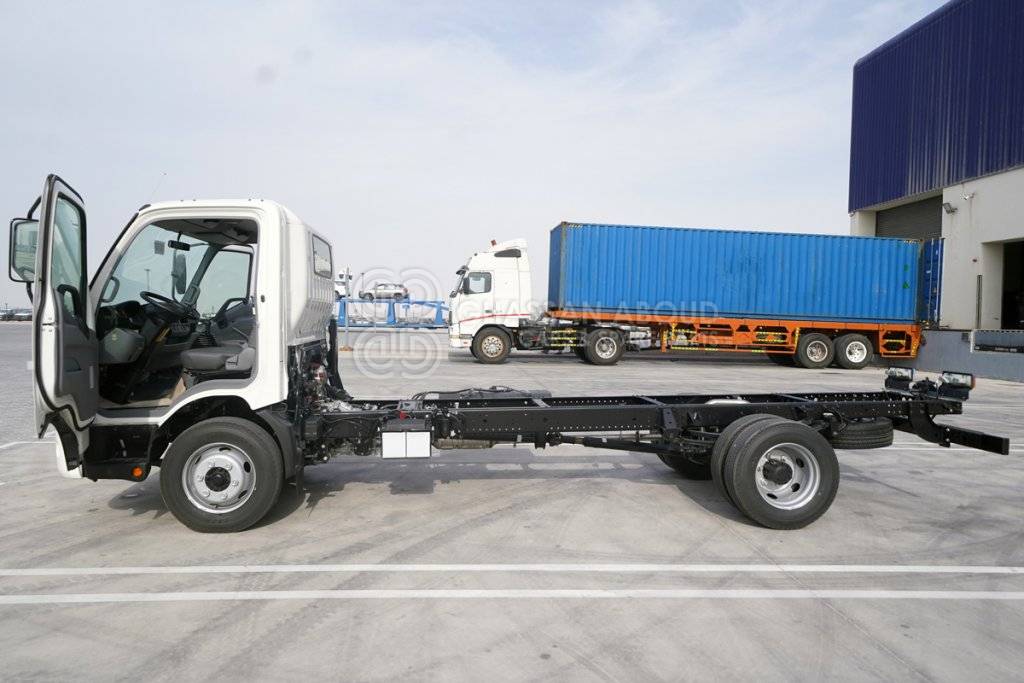

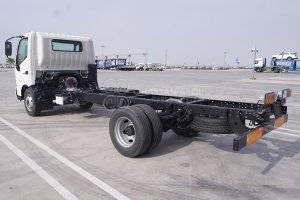

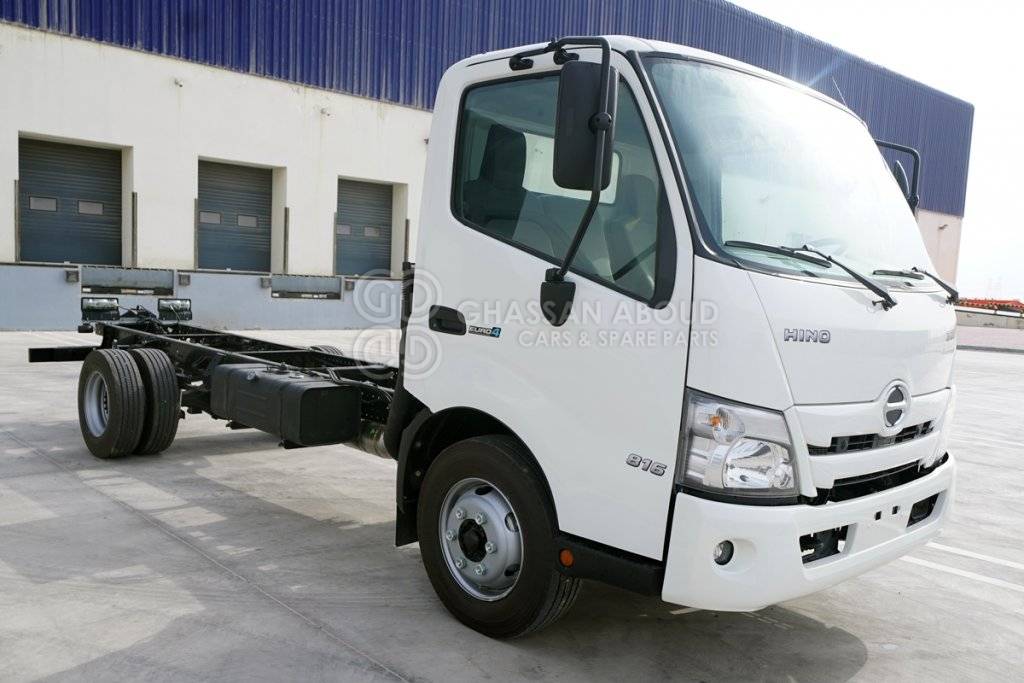

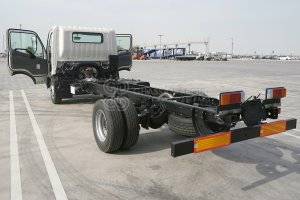

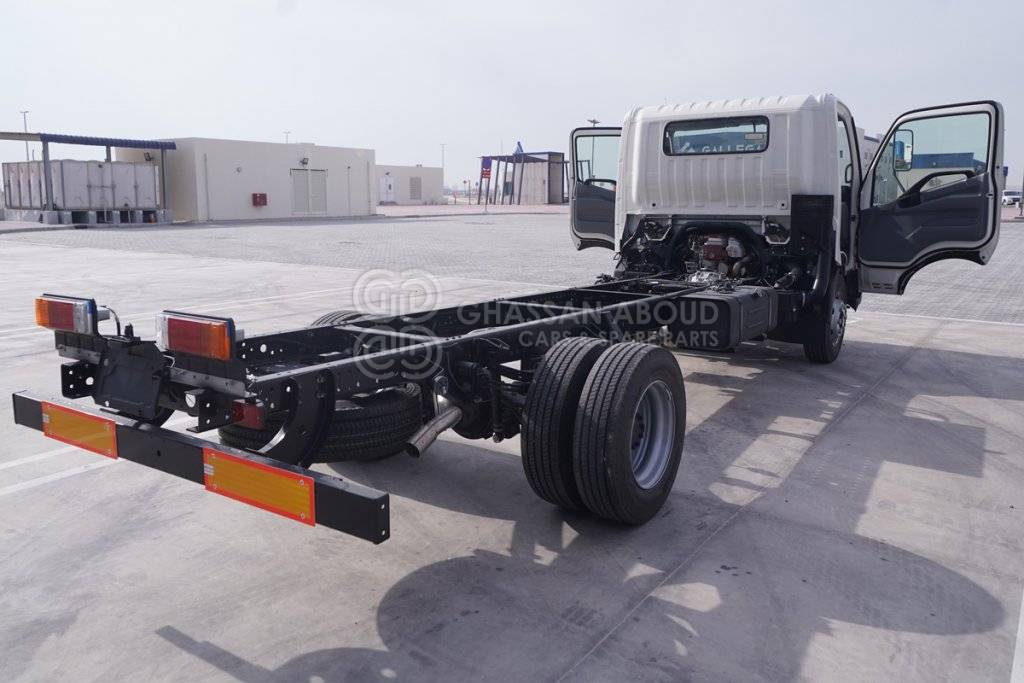

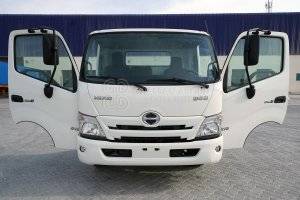

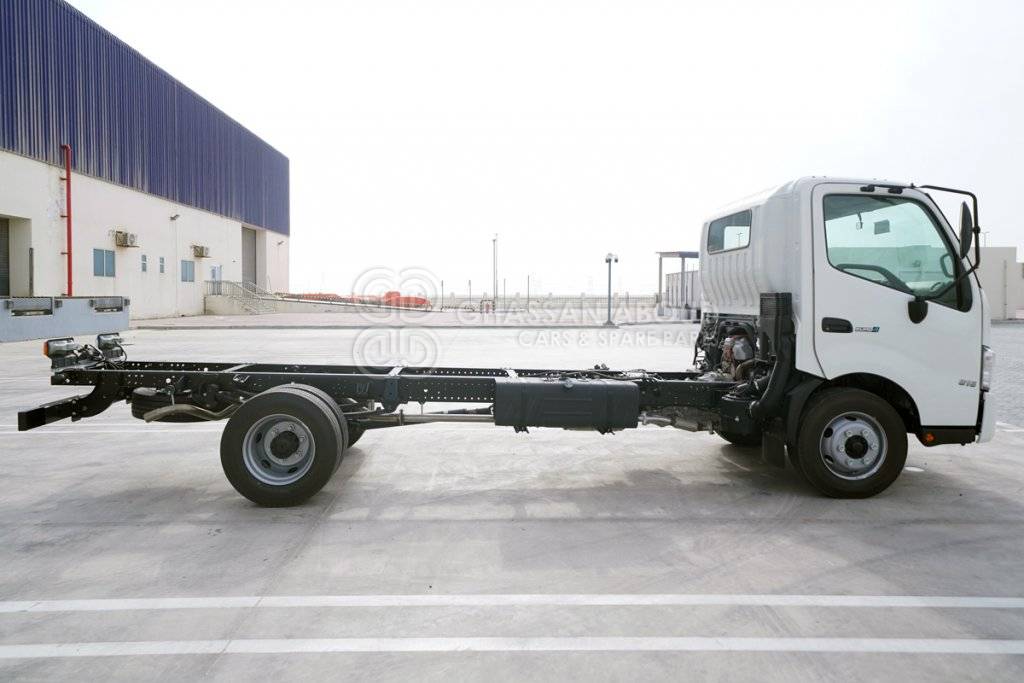

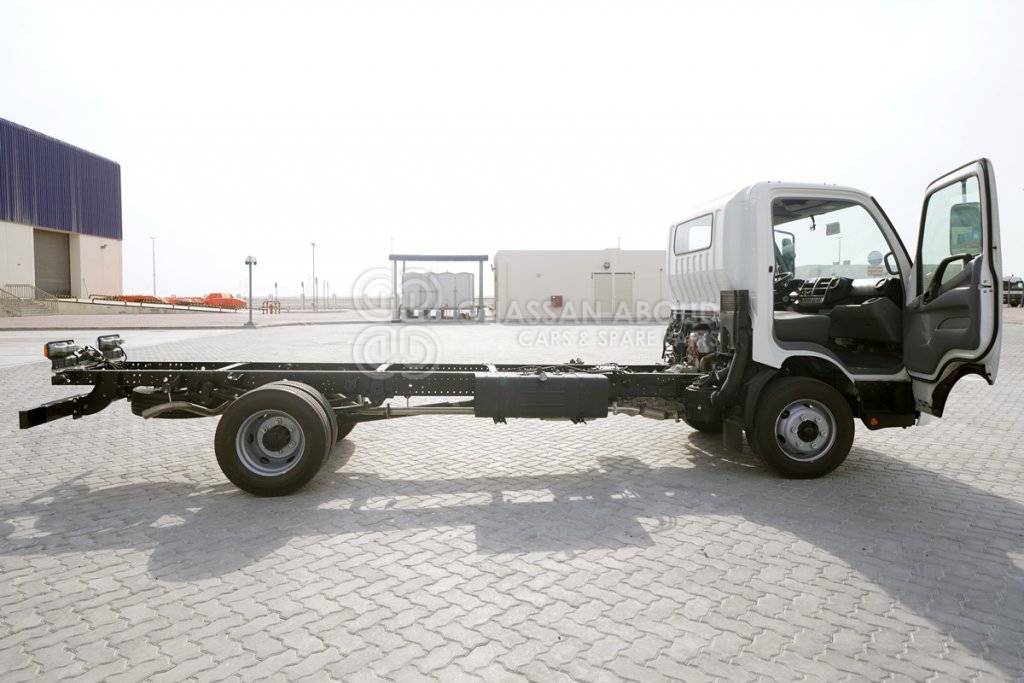

Hino 816 Chassis, 5.2 Tons (Approx.), Single Cabin with TURBO, ABS and AIR BAG MY23 300 Series Diesel

Specs: Code

Year: 2023

Model description

Model description:

Hino 816 Chassis, 5.2 Tons (Approx.), Single Cabin with TURBO, ABS and AIR BAG MY23 300 Series Code Diesel

Car code:

HNC8163 - 5.2 Ton (816 Chassis Single Cab)

Year:

2023

Engine & Transmission

Engine:

N04C-UV, Turbo, 4 cylinders

Displacement:

4009 cc

Max Output:

155 [email protected] 2,500 rpm

Max Torque:

422 N.m @ 1,400 RPM

Gearbox Model:

AISIN RE61

Transmission:

Manual 6+1

Final Gear Ratio:

5.571

Dimension, Capacities & Suspensions

Gross Vehicle Mass:

7,500 kg

Chassis Payload:

5.2 Ton (approx)

Front Axel:

2,880 kg

Rear Axel:

5,480 kg

Wheel Base:

3,870 mm

Overall Length:

6,740 mm

Cabin Width:

1,995 mm

Overall Height:

2,225 mm

Rear Overhang:

1,755 mm

Front Axel:

2,880 kg

Rear Axel:

5,480 mm

Front Tread:

1,655 mm

Rear Tread:

1,520 mm

Ground Clearance:

210 mm

Rear Chassis Height:

800 mm

Front Kerb Weight:

1,570 kg

Rear Kerb Weight:

900 kg

Alternator:

24v-60a

Fuel Tank Capacity:

100 liters

Rear Axle Width:

1,985 mm

Frame Width:

750 mm

Frame Section:

192.8 x 65 x 5.9mm

Parking Brake:

Mechanical

Exhaust Brake:

Yes

Service Brake:

Vacuum Hydraulic

Front Brake:

Disc/Drum

Rear Brake:

Drum

Tyre Size:

215/75R17.5-126/124

Tyre:

Tubeless

Interior features & Safety

Anti Brake System (ABS)

SRS Airbag

Audio with Bluetooth

Power Windows

Central Lock

Fog Lamp

Specifications may change without prior notice.
