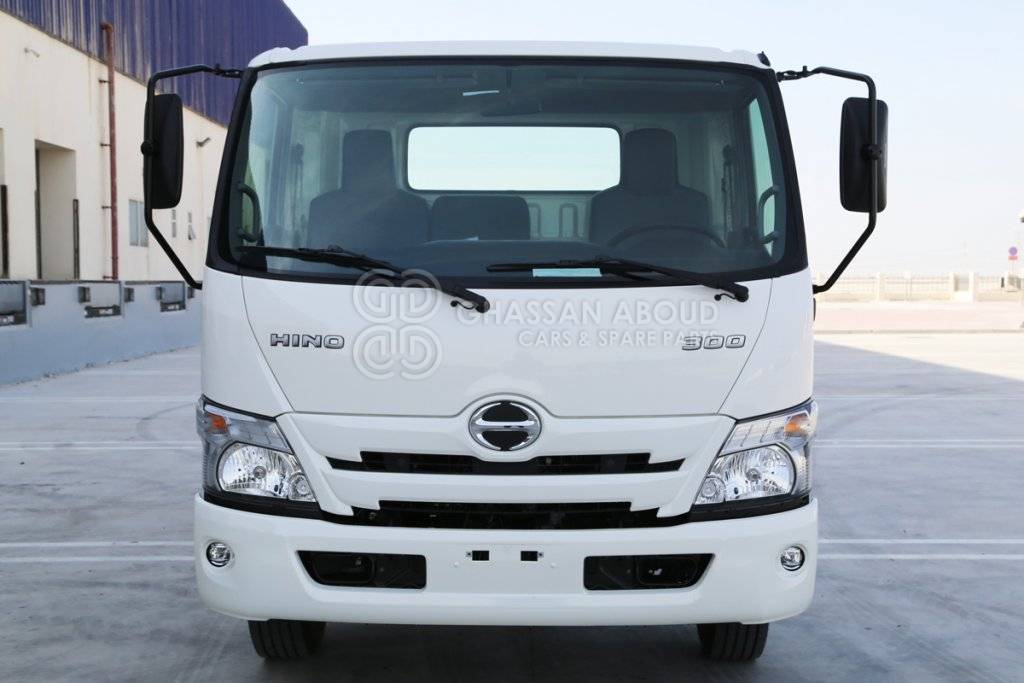

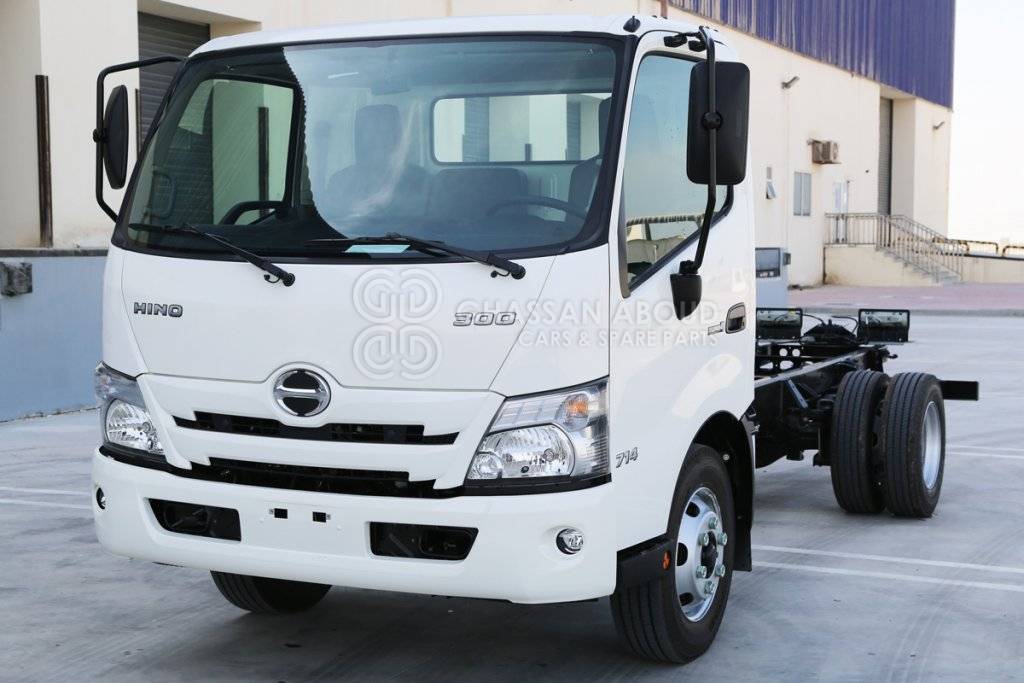

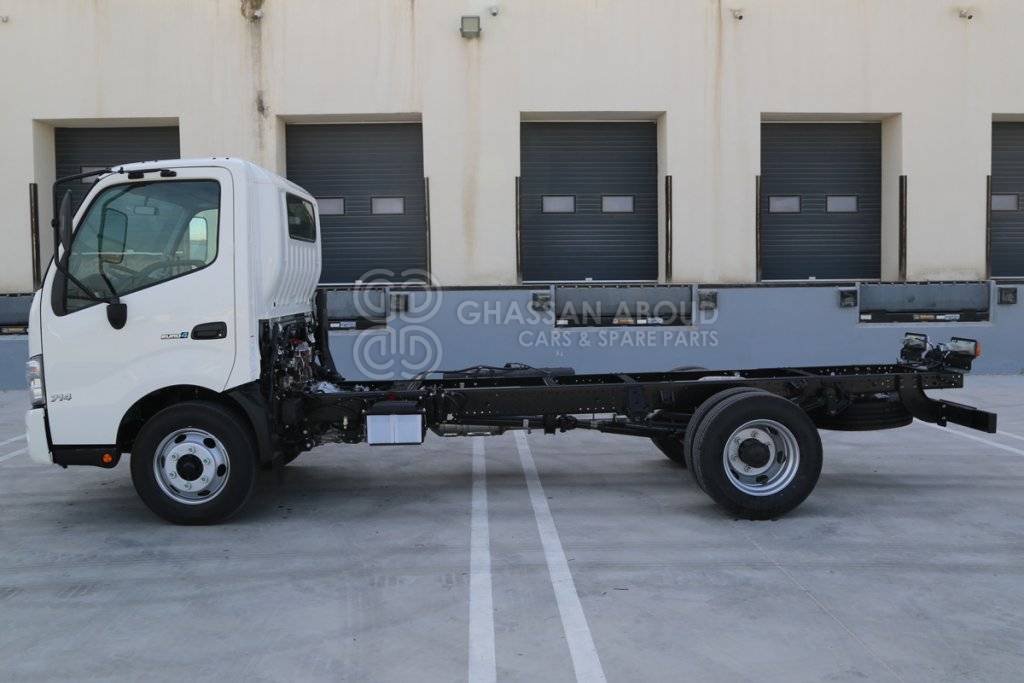

Hino 714 Chassis, 4.2 Tons (Approx.), Single cabin with TURBO, ABS and AIR BAG MY23 300 Series Diesel

Specs: Code

Year: 2023

Model description

Model description:

Hino 714 Chassis, 4.2 Tons (Approx.), Single cabin with TURBO, ABS and AIR BAG MY23 300 Series Code Diesel

Car code:

HNCE023 - 4.2 Ton (714 Chassis)

Year:

2023

Engine & Transmission

Engine:

Hino N04C-WJ, Turbo, 4009 CC, 4 Cylinder

Max Output:

1410 ps @ 2,500 rpm

Max Torque:

394 N.m. @ 1,400 rpm

Gearbox Model:

AISIN RE50

Transmission:

5 + 1, Manual Transmission

Final Gear Ratio:

5.571

Dimension, Capacities & Suspensions

Gross Vehicle Mass:

6,500 kg

Chassis Payload:

4.2 Tons (approx)

Wheel Base:

3,430 mm

Overall Length:

6,120 mm

Cabin Width:

1,995 mm

Overall Height:

2,230 mm

Cab to Frame end:

4,435 mm

Rear Overhang:

1,575 mm

Front Axel:

3,100 kg

Rear Axel:

5,100 kg

Front Tread:

1,655 mm

Rear Tread:

1,520 mm

Ground Clearance:

210 mm

Rear Chassis Height:

790 mm

Front Kerb Weight:

1,505 kg

Rear Kerb Weight:

795 kg

Alternator:

24V - 60A

Fuel Tank Capacity:

100

Rear Axle Width:

1,985 mm

Frame Width:

750 mm

Frame Section:

192.8 x 65 x 5.9 mm

Parking Brake:

Mechanical

Exhaust Brake:

Yes

Service Brake:

Vacuum - Hydraulic

Front Brake:

Drum

Rear Brake:

Drum

Tyre Size:

215/75R 17.5-126/124

Tyre:

Tubeless

Interior features & Safety

Anti Brake System (ABS)

SRS Airbag

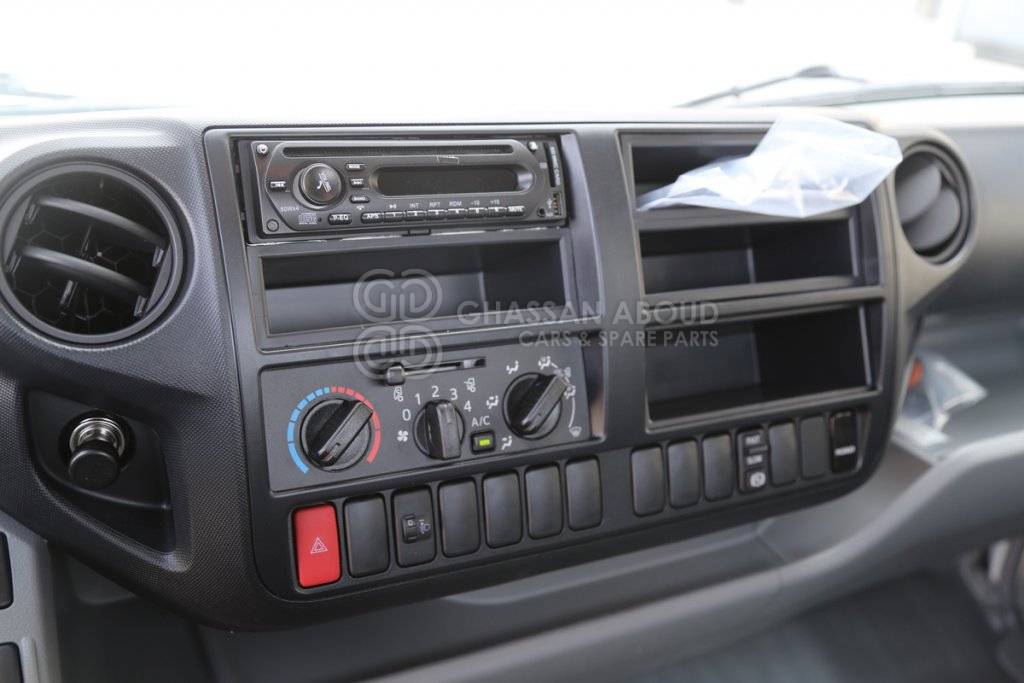

Audio with Bluetooth

Power Windows

Central Lock

Fog Lamp

Specifications may change without prior notice.
