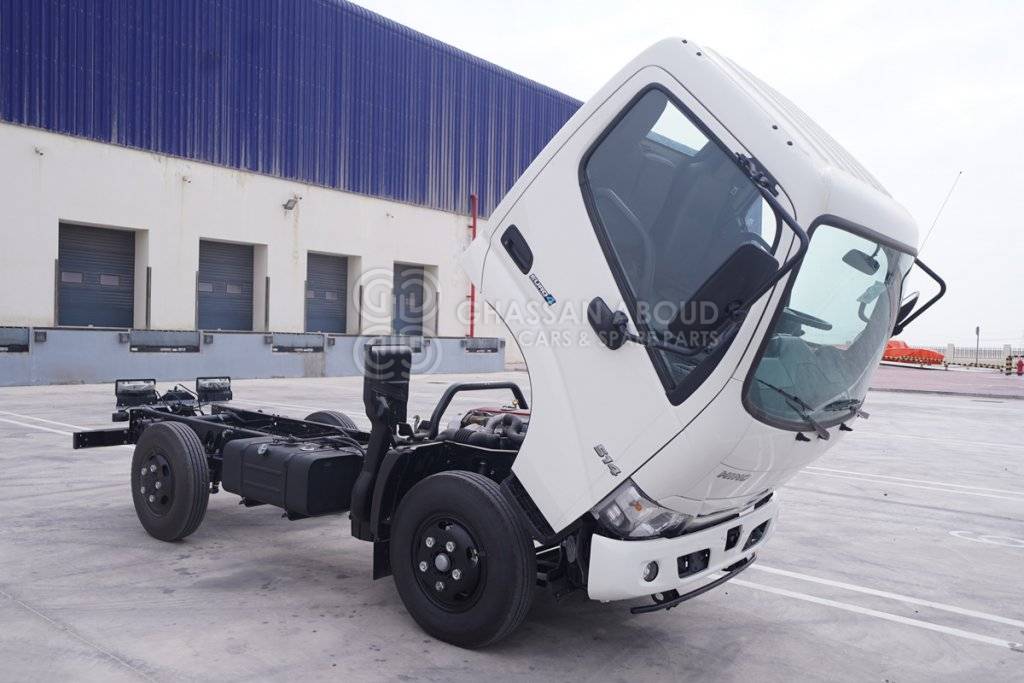

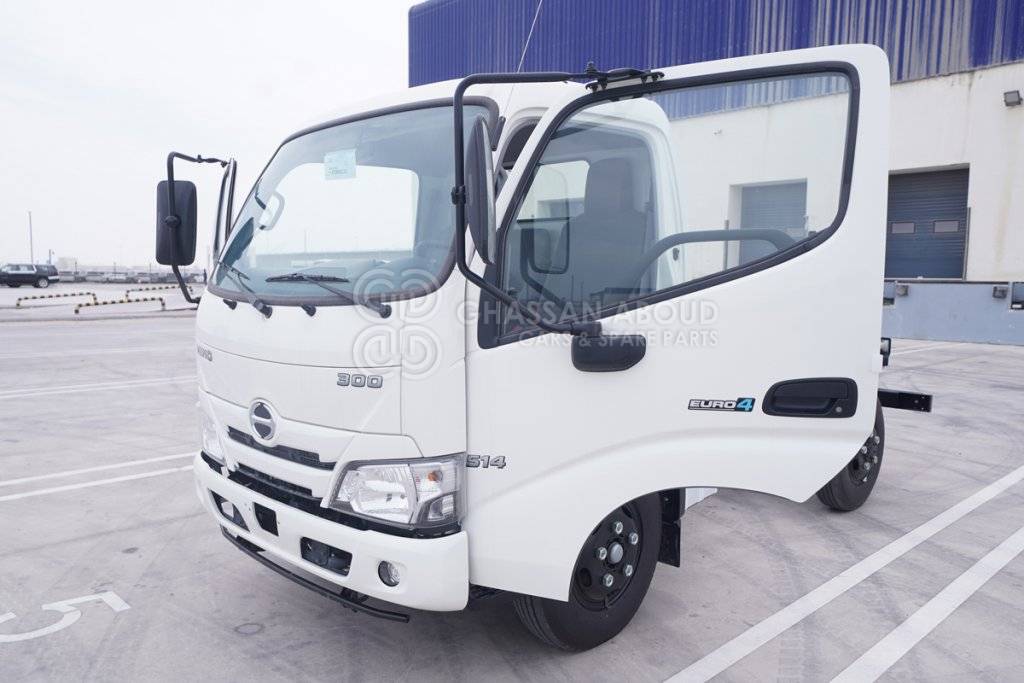

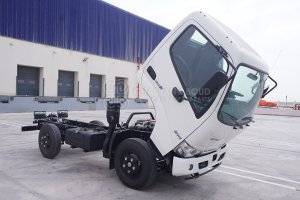

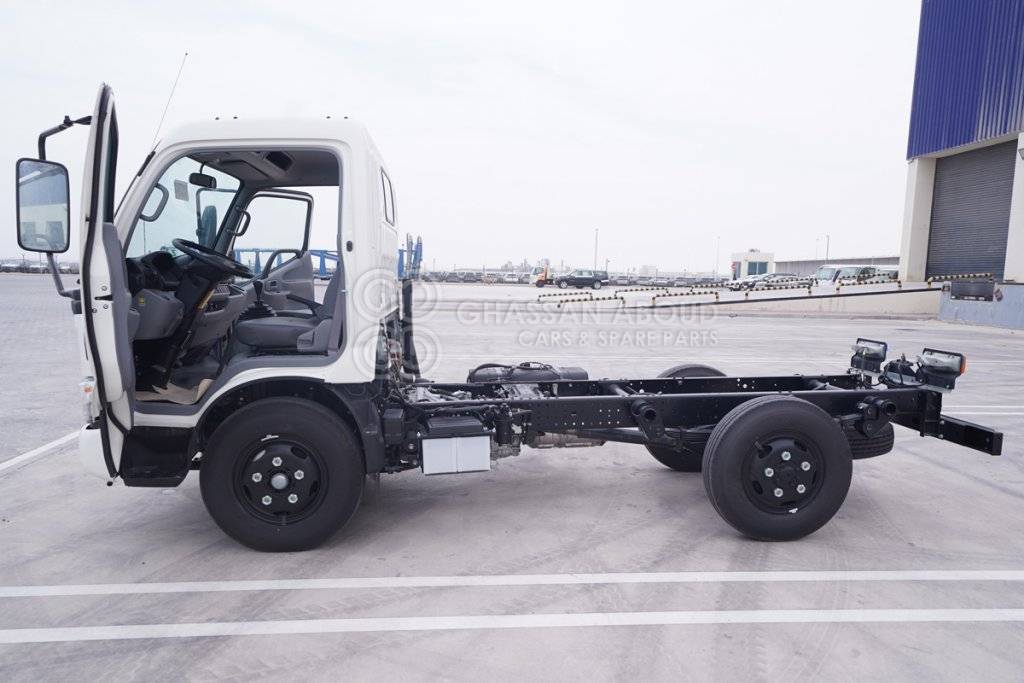

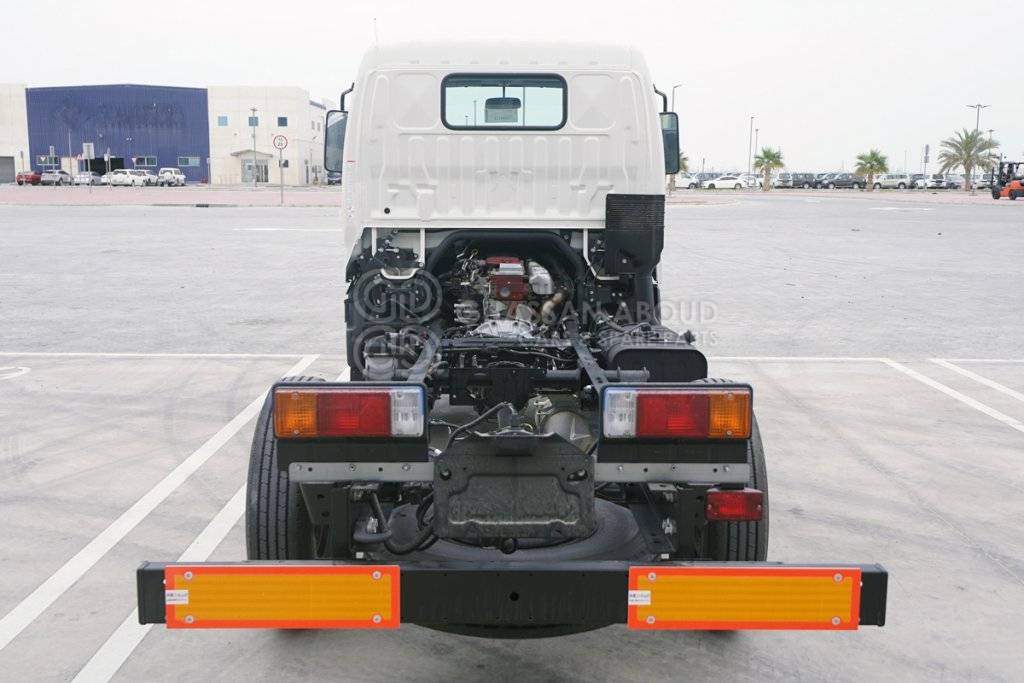

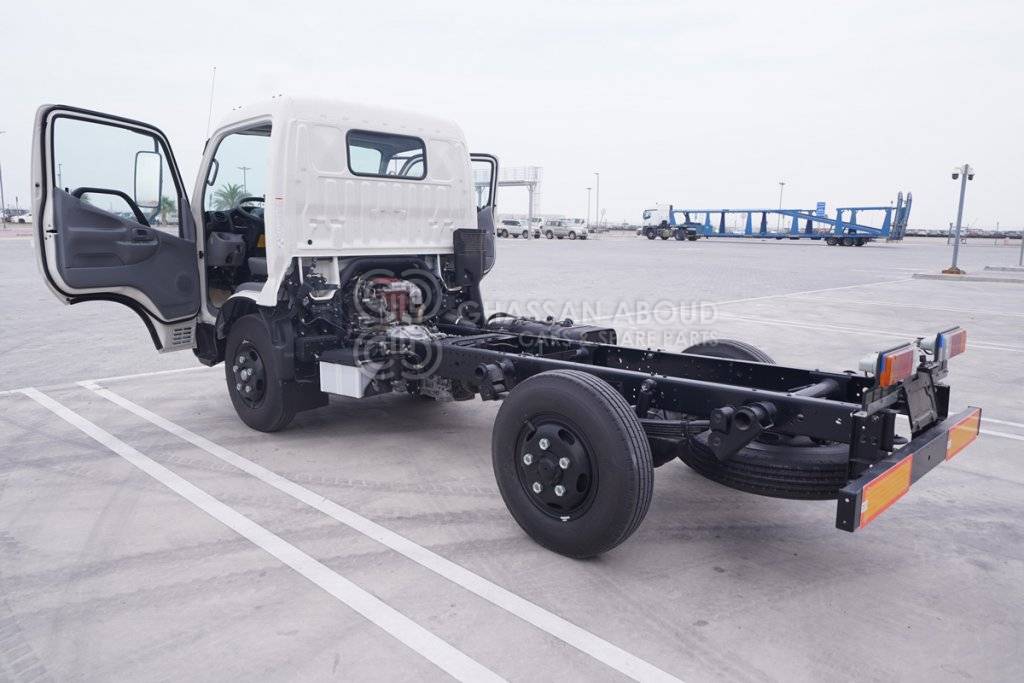

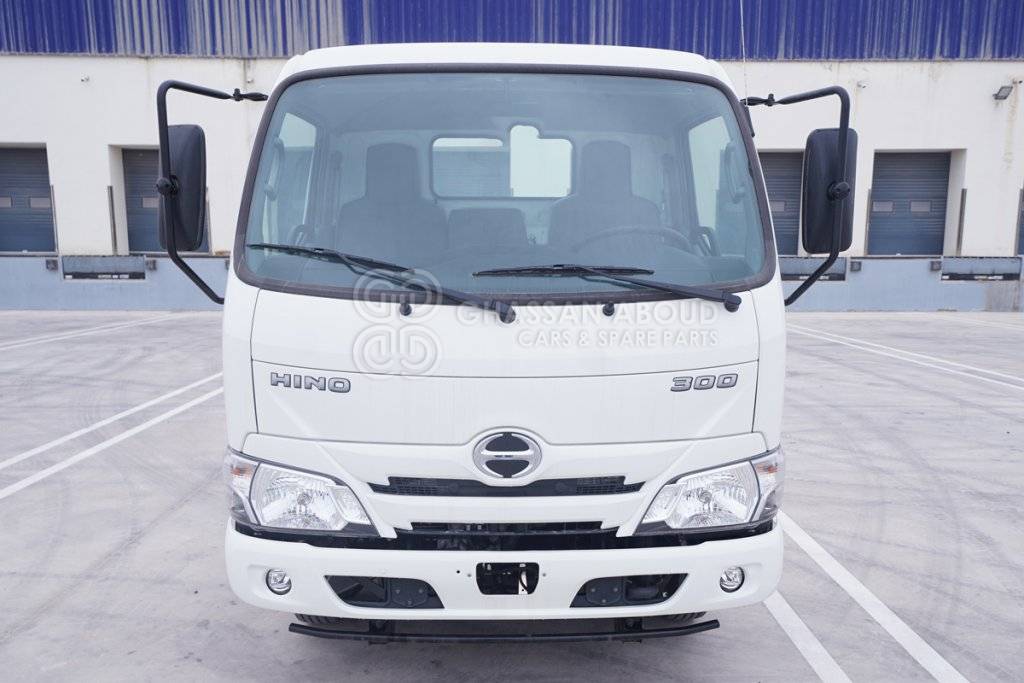

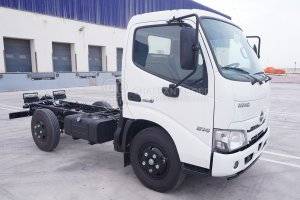

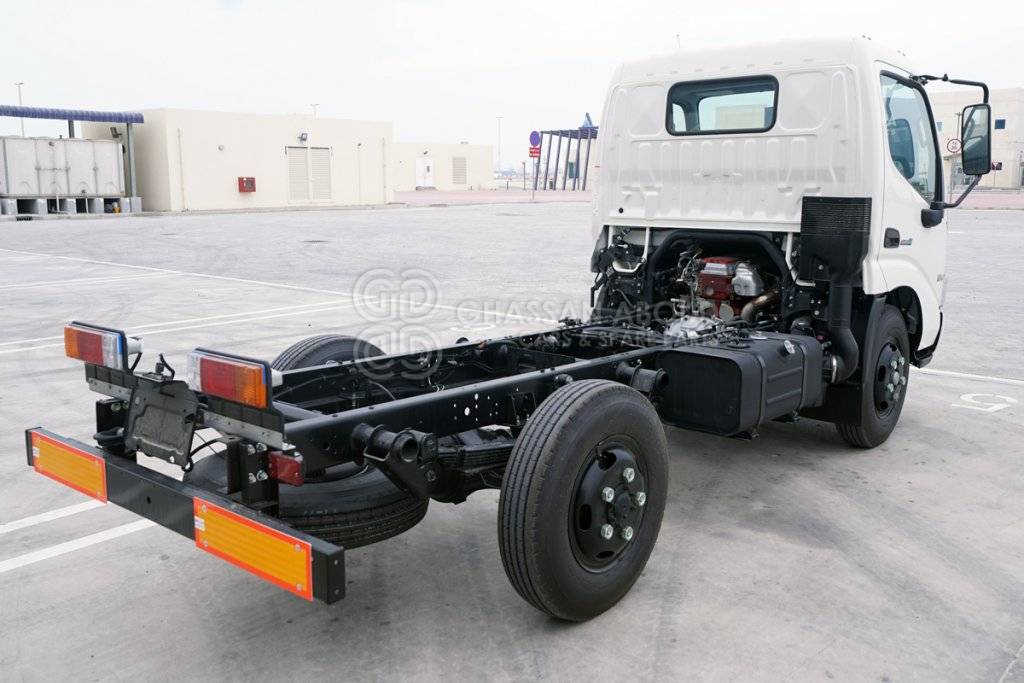

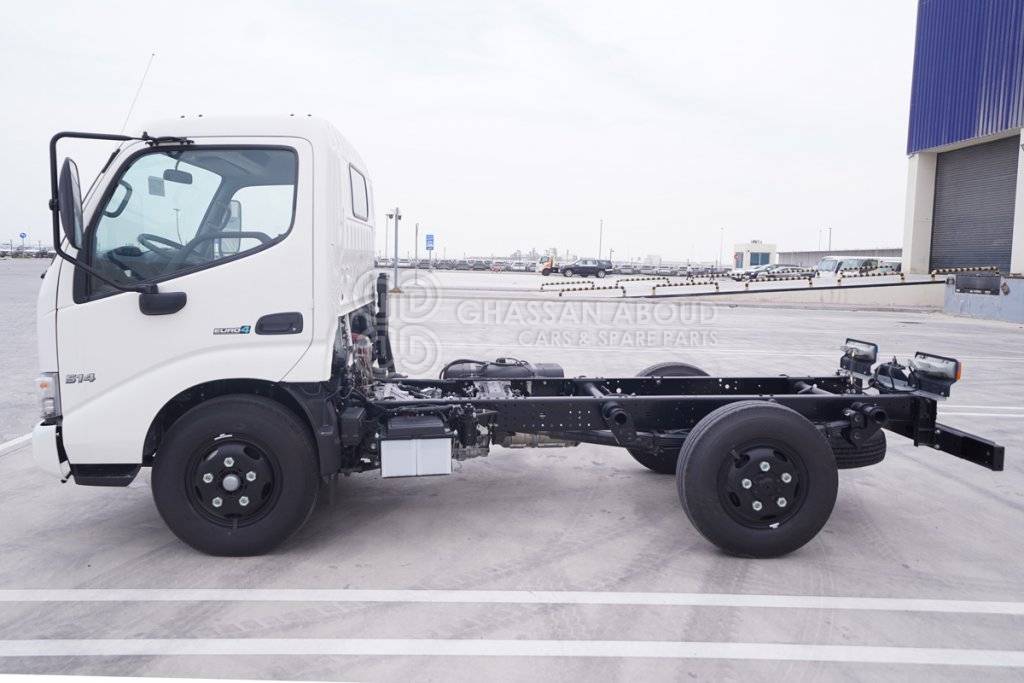

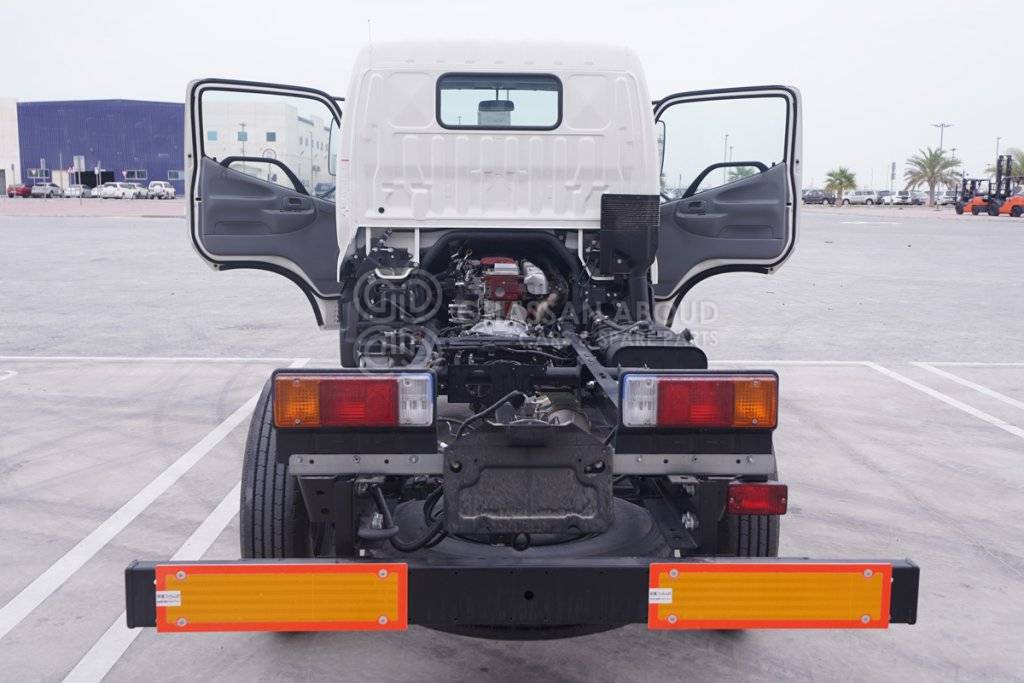

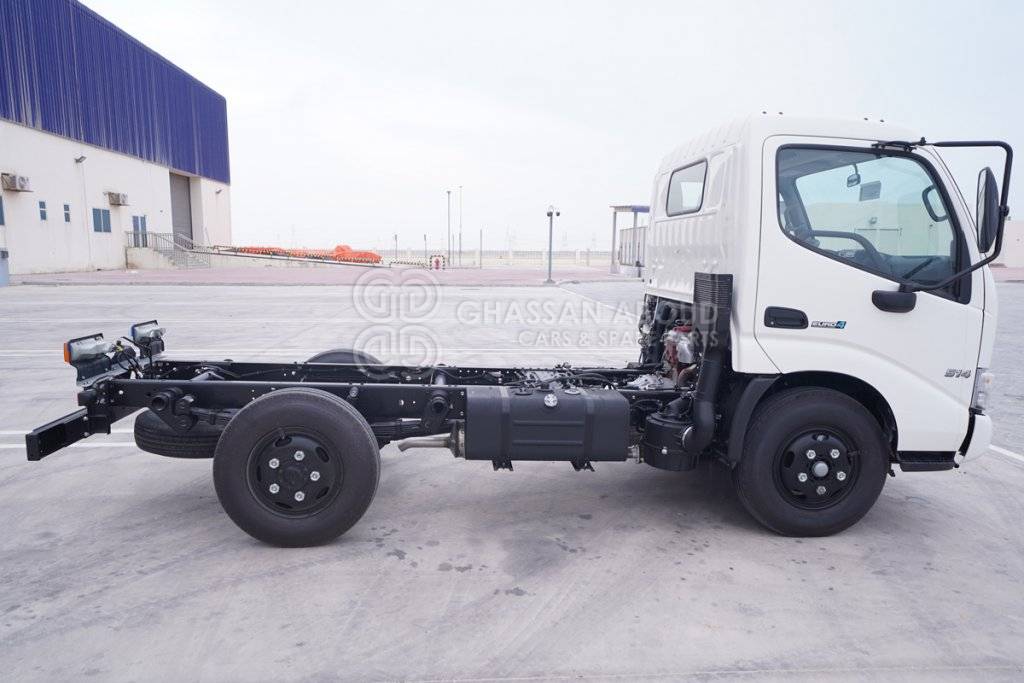

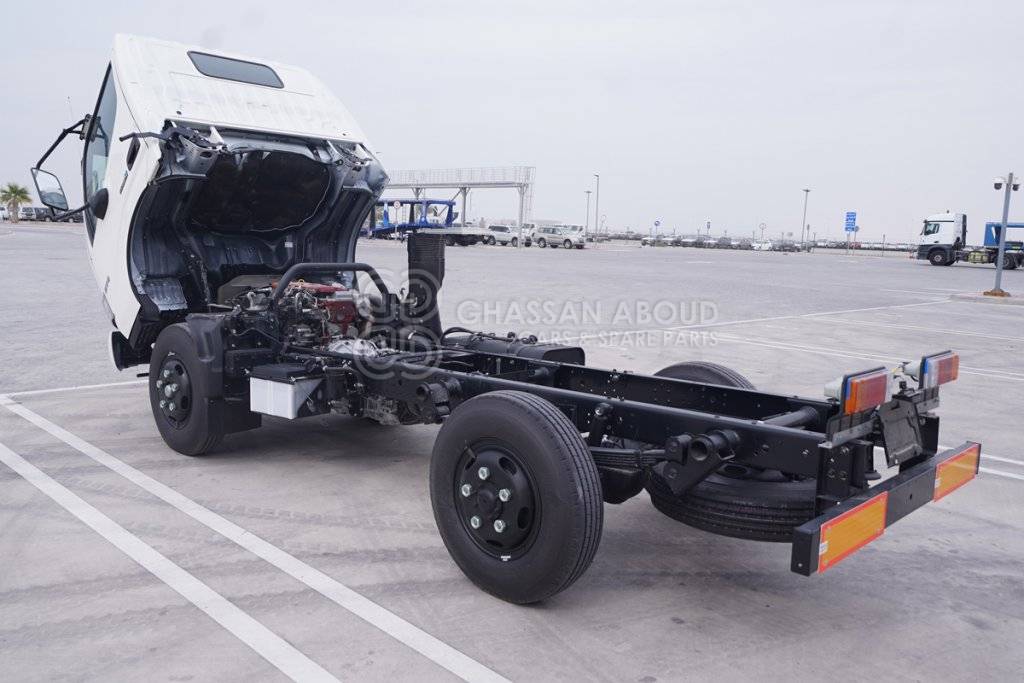

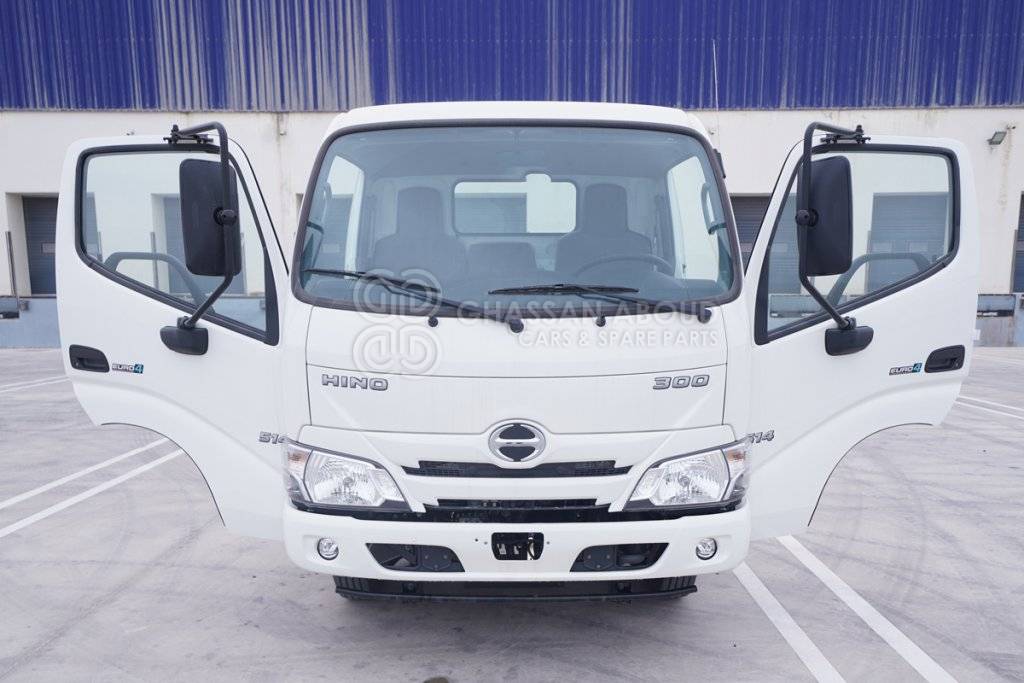

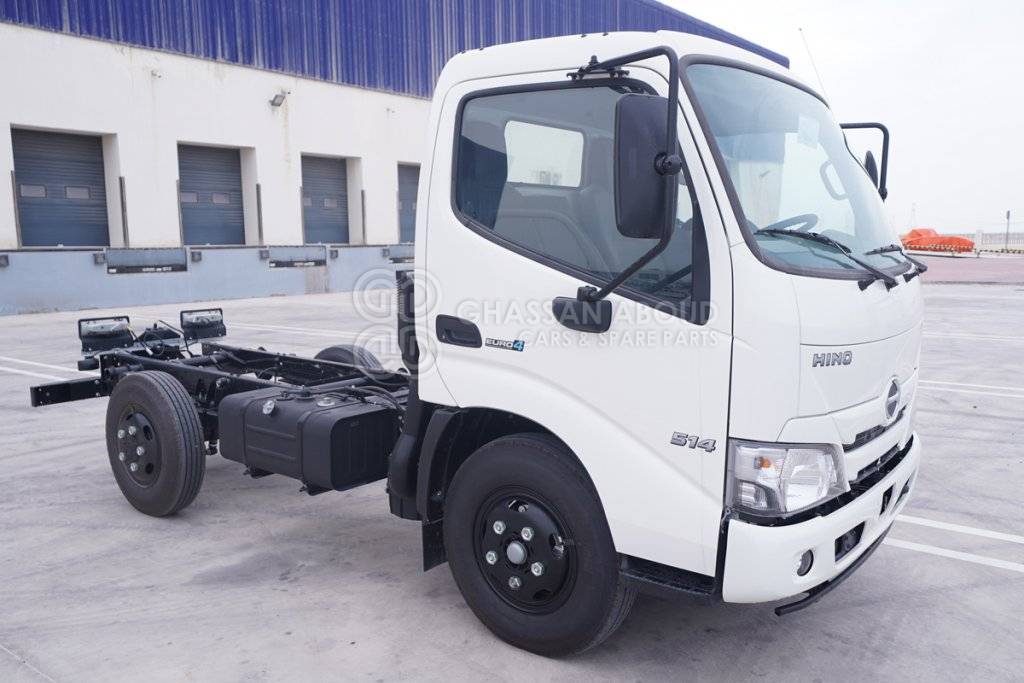

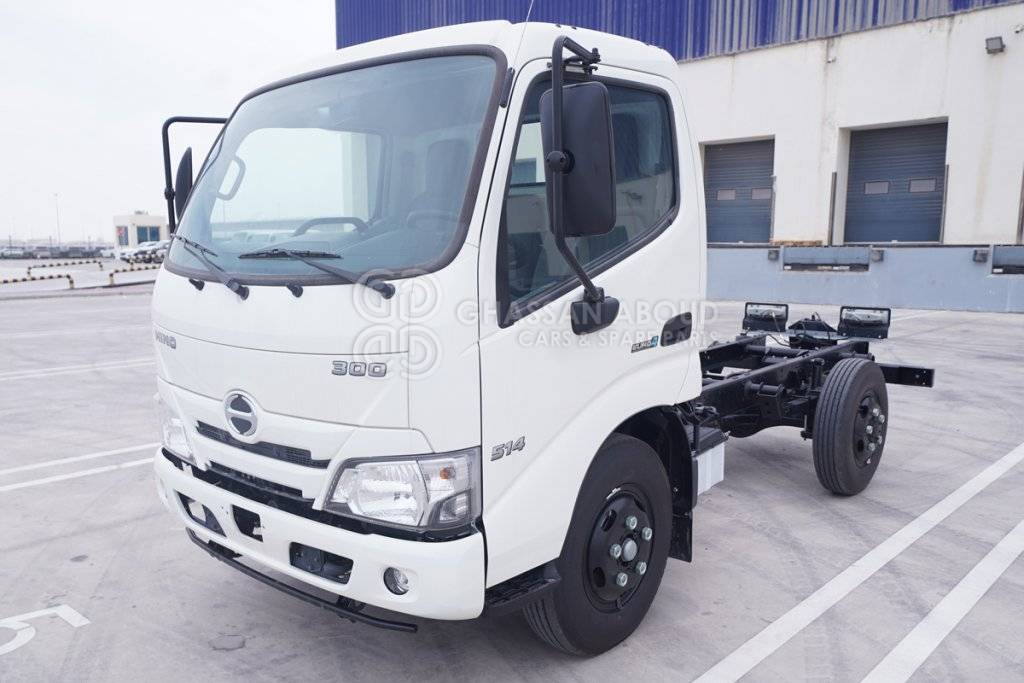

Hino 514 Chassis, 2.5 Ton 4X2, Single Narrow Cab with TURBO, ABS and AIR BAG MY23 300 Series Diesel

Specs: Code

Year: 2023

Model description

Model description:

Hino 514 Chassis, 2.5 Ton 4X2, Single Narrow Cab with TURBO, ABS and AIR BAG MY23 300 Series Code Diesel

Car code:

HNC5143- 2.5 Ton (514 Chassis)

Year:

2023

Engine & Transmission

Engine:

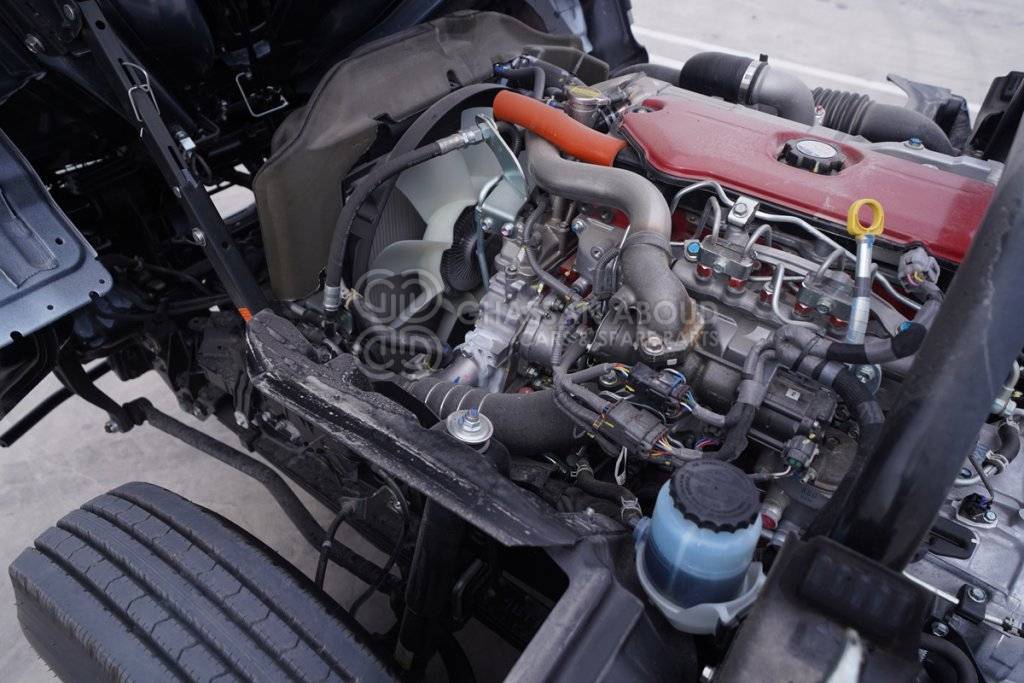

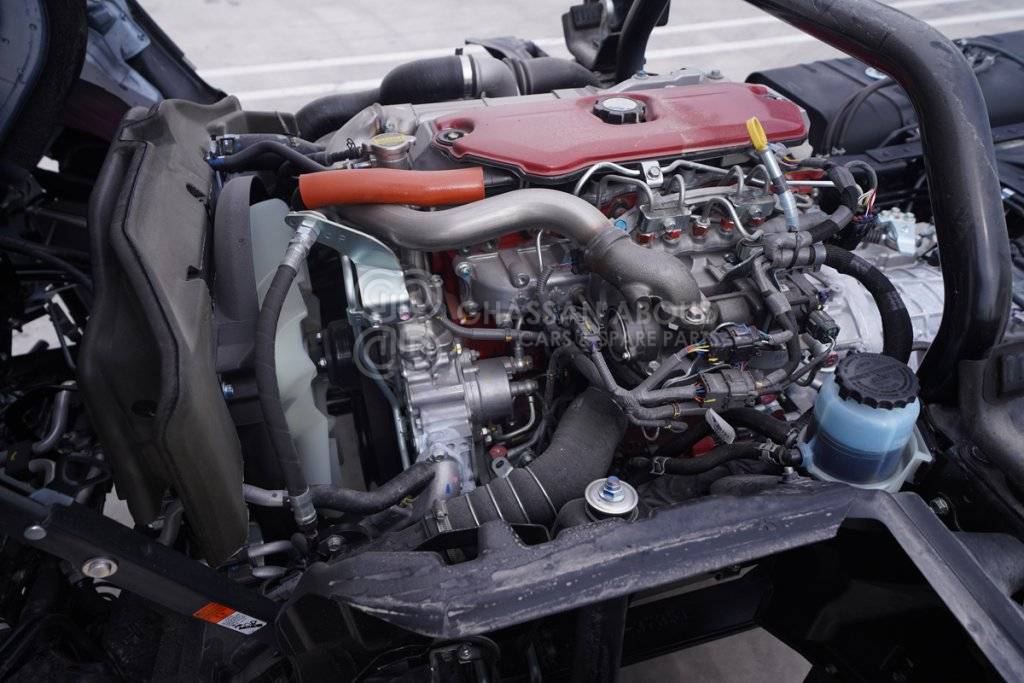

Hino N04C-WJ, Euro-4 Turbo, 4009 CC, 4 Cylinder

Max Output:

140 ps @ 2,500 rpm

Max Torque:

394 N.M @ 1,400 rpm

Gearbox Model:

AISIN RE50

Transmission:

5 + 1, Manual Transmission

Final Gear Ratio:

4.625

Dimension, Capacities & Suspensions

Gross Vehicle Mass:

4,500 mm

Chassis Payload:

2.5 Ton

Wheel Base:

2,525 mm

Overall Length:

4,680 mm

Cabin Width:

1,695 mm

Overall Height:

2,130 mm

Cab to Frame end:

3055 mm

Rear Overhang:

1,135 mm

Front Axel:

2,260 kg

Rear Axel:

2,460 kg

Front Tread:

1,400 mm

Rear Tread:

1,350 mm

Ground Clearance:

195 mm

Rear Chassis Height:

720 mm

Front Kerb Weight:

1,955 kg

Rear Kerb Weight:

640 kg

Alternator:

24V - 80A

Fuel Tank Capacity:

80 L

Rear Axle Width:

1,545 mm

Frame Width:

700 mm

Frame Section:

177 x 60 x 4.5 mm

Parking Brake:

Mechanical

Exhaust Brake:

Yes

Service Brake:

Vacuum - Hydraulic

Front Brake:

Disk / Drum

Rear Brake:

Disk / Drum

Tyre Size:

7.00R16

Tyre:

Tube

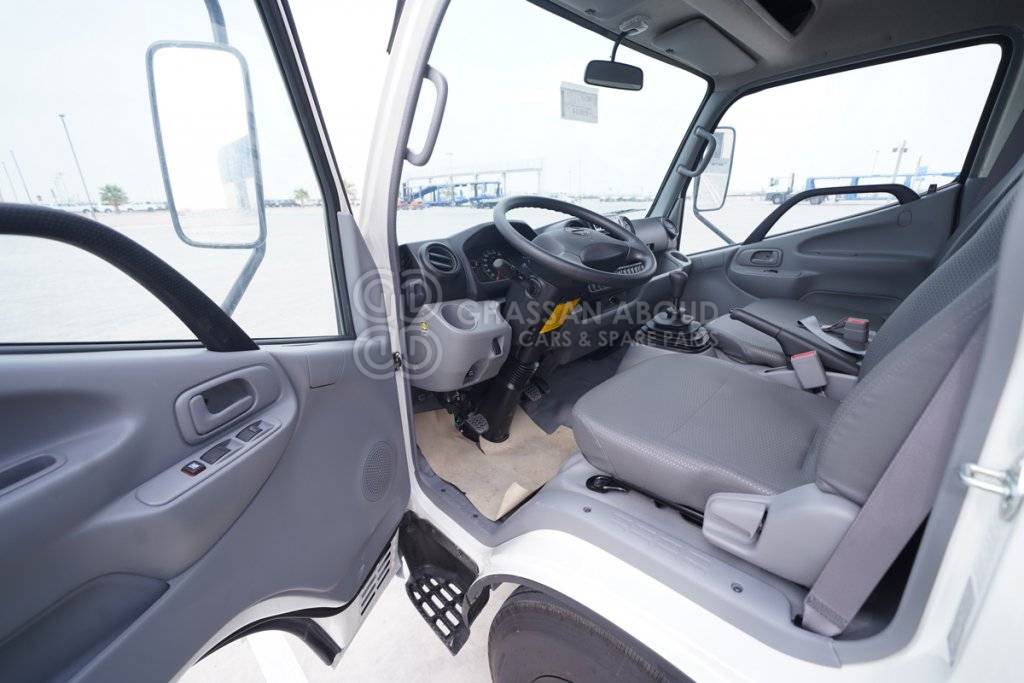

Interior features & Safety

Anti Brake System (ABS)

SRS Airbag

Audio with Bluetooth

Power Windows

Central Lock

Fog Lamp

Specifications may change without prior notice.
