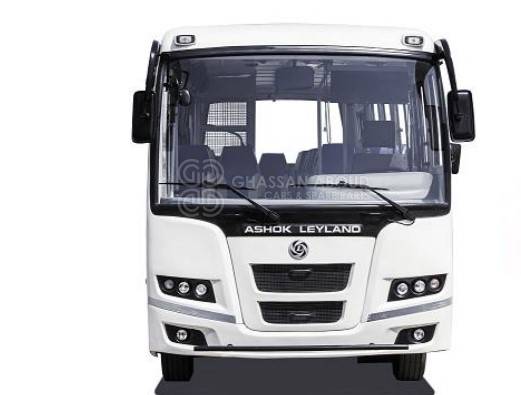

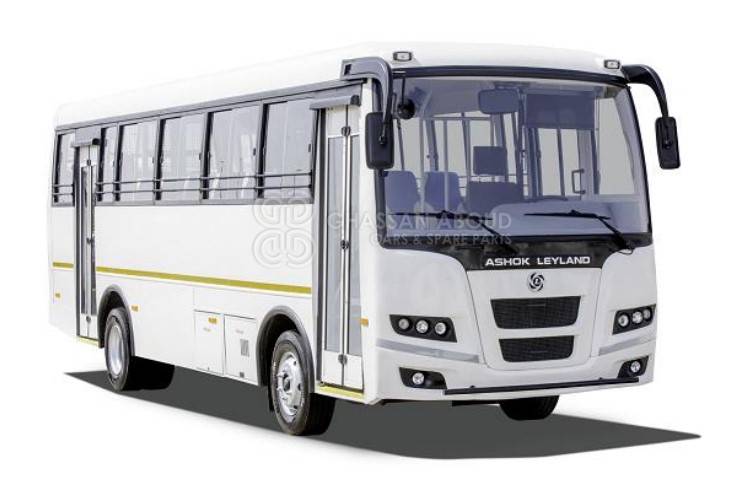

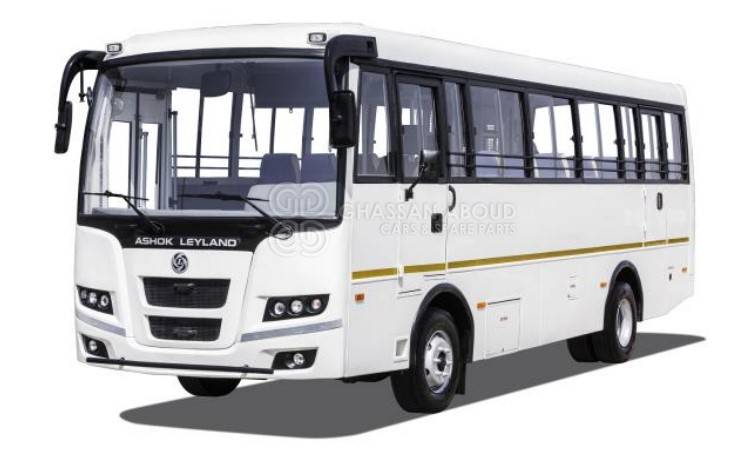

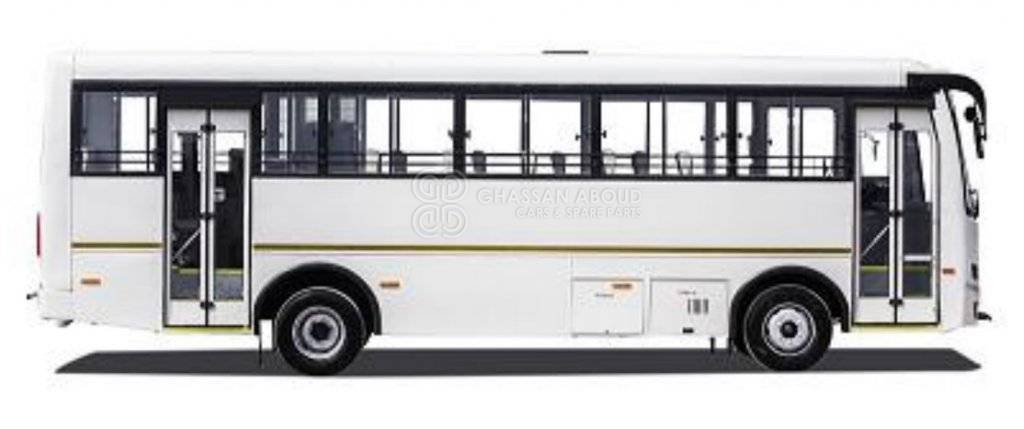

ASHOK LEYLAND EAGLE 32 + 1 SEATER BUS WITH/ WITHOUT A/C MY 23 Bus Diesel

Specs: Code

Year: 2023

Model description

Model description:

ASHOK LEYLAND EAGLE 32 + 1 SEATER BUS WITH/ WITHOUT A/C MY 23 Bus Code Diesel

Car code:

ABS3223 - 32+1 Seater

Year:

2023

Engine & Transmission

Engine Type:

HA6DTI3K - 6 Cylinder Turbo charged intercooled, Diesel Engine with inline pump

Displacement/ Cubi Capacity:

5759 cc

Max. Output :

160 HP (120 kW) @ 2400 rpm

Max. Torque:

56 kgm (550Nm) @1700 rpm

Emmision:

Euro III

Clutch:

Air boosted Hydraulically actuarted 380 mm Diaphragm clutch

Gear Box:

ZF - S6-36 - 6 Speed synchromesh with overdrive

Dimension, Capacities & Suspensions

Rear Axle:

6500 kg

Front Axle:

3800 kg

Suspension:

Multileaf Parabolic Leaf spring

Steering:

ZF Integral power assisted recirculating ball type

No. of Tyres:

2 Nos in front, 4 nos in Rear, 1 no spare

Tyre Size:

8.25R 16.00 - 14PR

Brakes:

Full air dual line

Parking Brake:

Spring actuated brakes on rear wheels only

Additional:

Exhaust brake

Battery:

150 Amp. Hr - 2 x12 V

Alternator:

100 Amps

Gross Vehicle Weight:

9280 kg

Shipping Dimension:

8600 x 2310 x 2900 mm (LxWxH)

Shipping Weight:

5500 kg

Wheelbase:

4200mm

Min. Ground Clearance:

200mm

Turning Circle Diameter:

16m

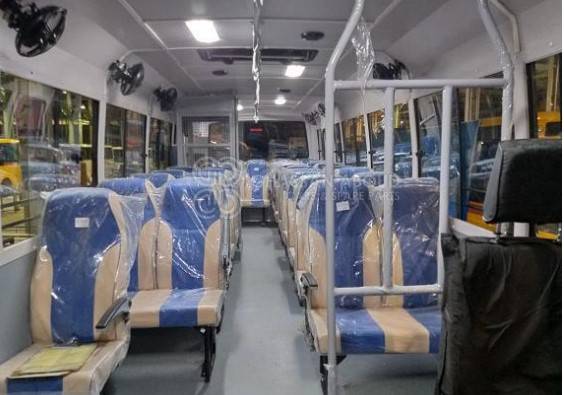

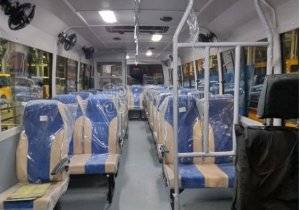

Interior features & Safety

Front/Bumper: FRP

Rear Bumper: FRP

Floor: Poly Vinyl on plywood

Curtains: Curtains shall be provided

Luggage Space: At rear

Door: At front Overhang

Entertainment: FM / DVD Player + speaker

Seats: Standard High Back

Lighting: Bright Saloon Lamp

Engine Type: Euro 3 electronic

Seating Capacity: 2x2 layout, 32 nos

Specifications may change without prior notice.
